Navigation Module

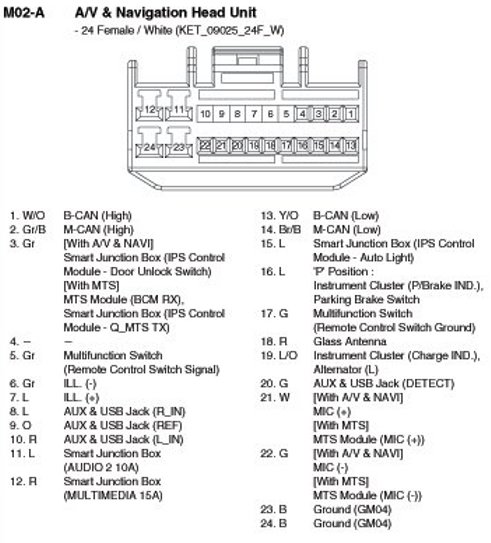

M02-A A/V & Navigation Head Unit:

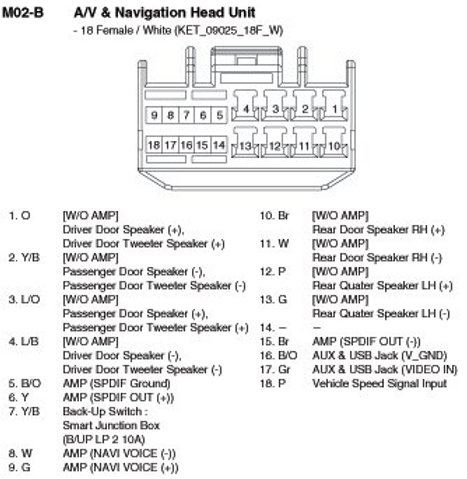

M02-B A/V & Navigation Head Unit:

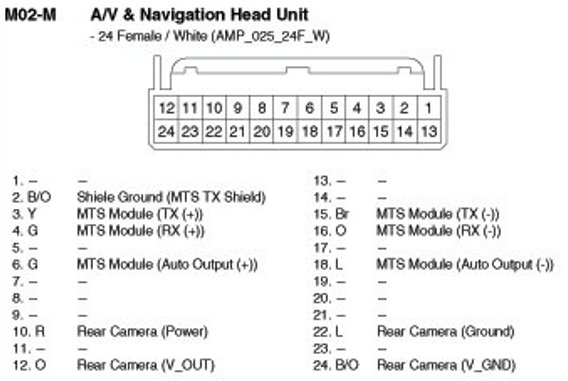

M02-M A/V & Navigation Head Unit:
