Power Distribution Relay

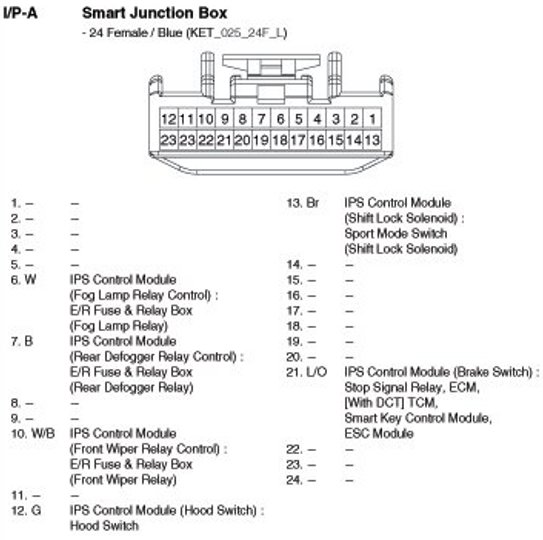

I/P-A Smart Junction Box:

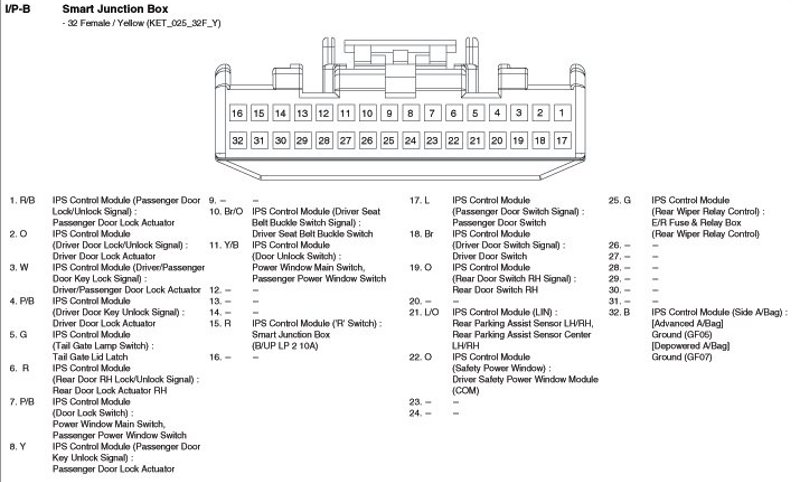

I/P-B Smart Junction Box:

I/P-C Smart Junction Box:

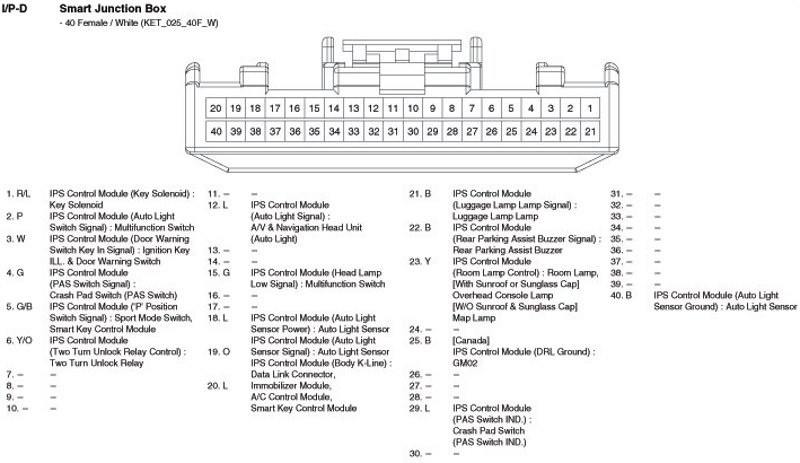

I/P-D Smart Junction Box:

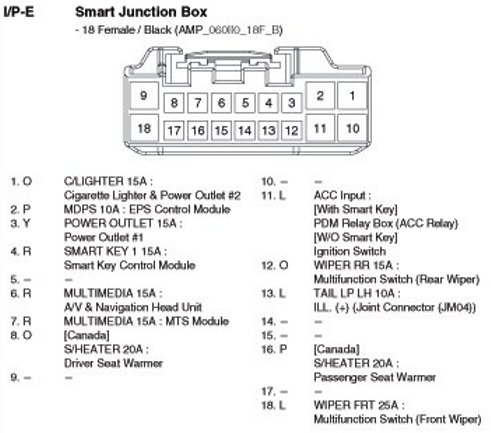

I/P-E Smart Junction Box:

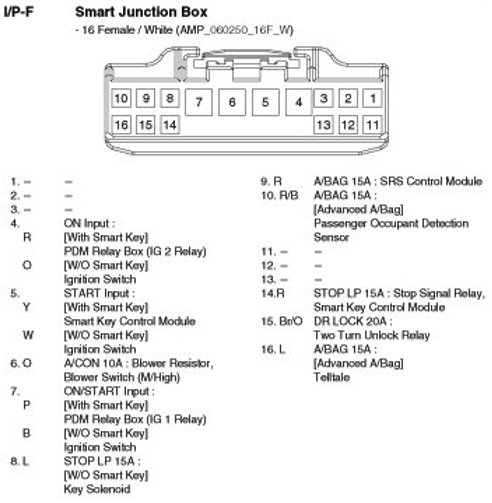

I/P-F Smart Junction Box:

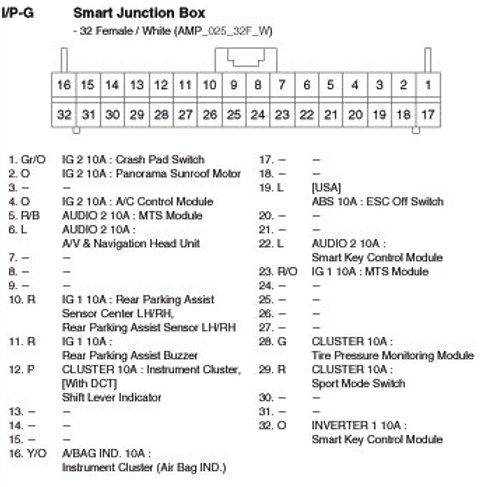

I/P-G Smart Junction Box:

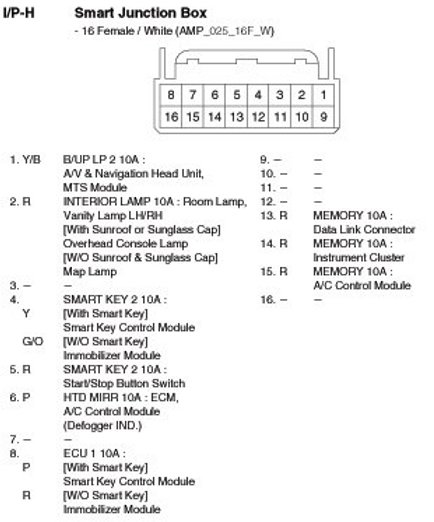

I/P-H Smart Junction Box:

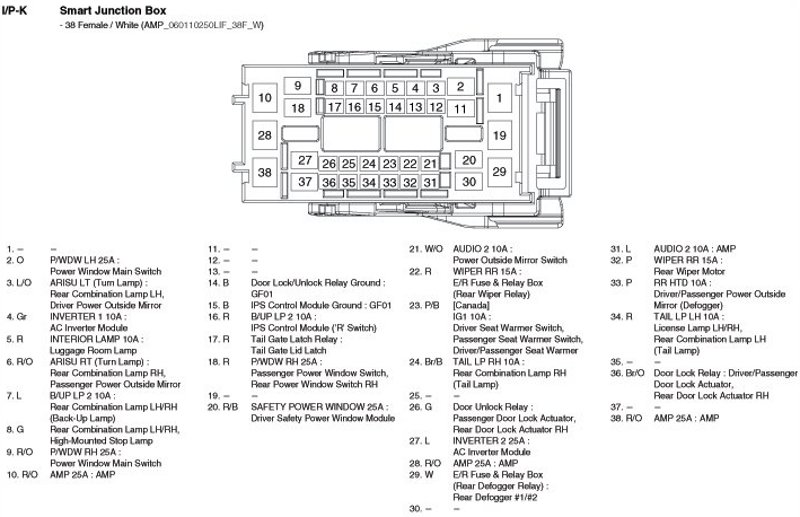

I/P-K Smart Junction Box:

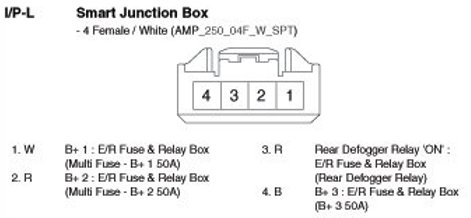

I/P-L Smart Junction Box:

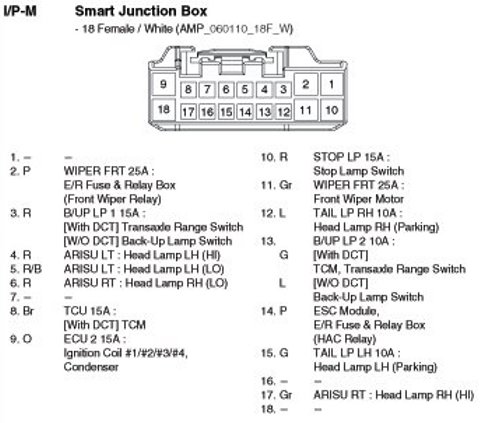

I/P-M Smart Junction Box:

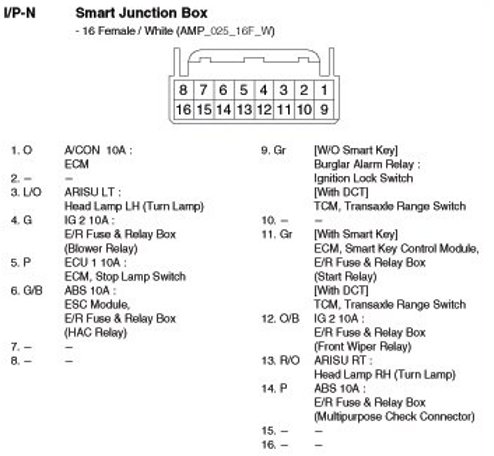

I/P-N Smart Junction Box:
