Engine Control Module

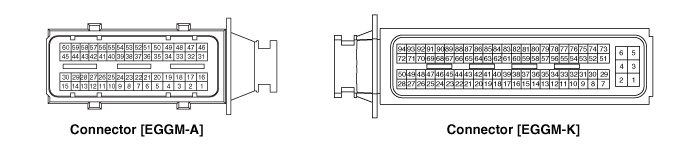

Harness Connector

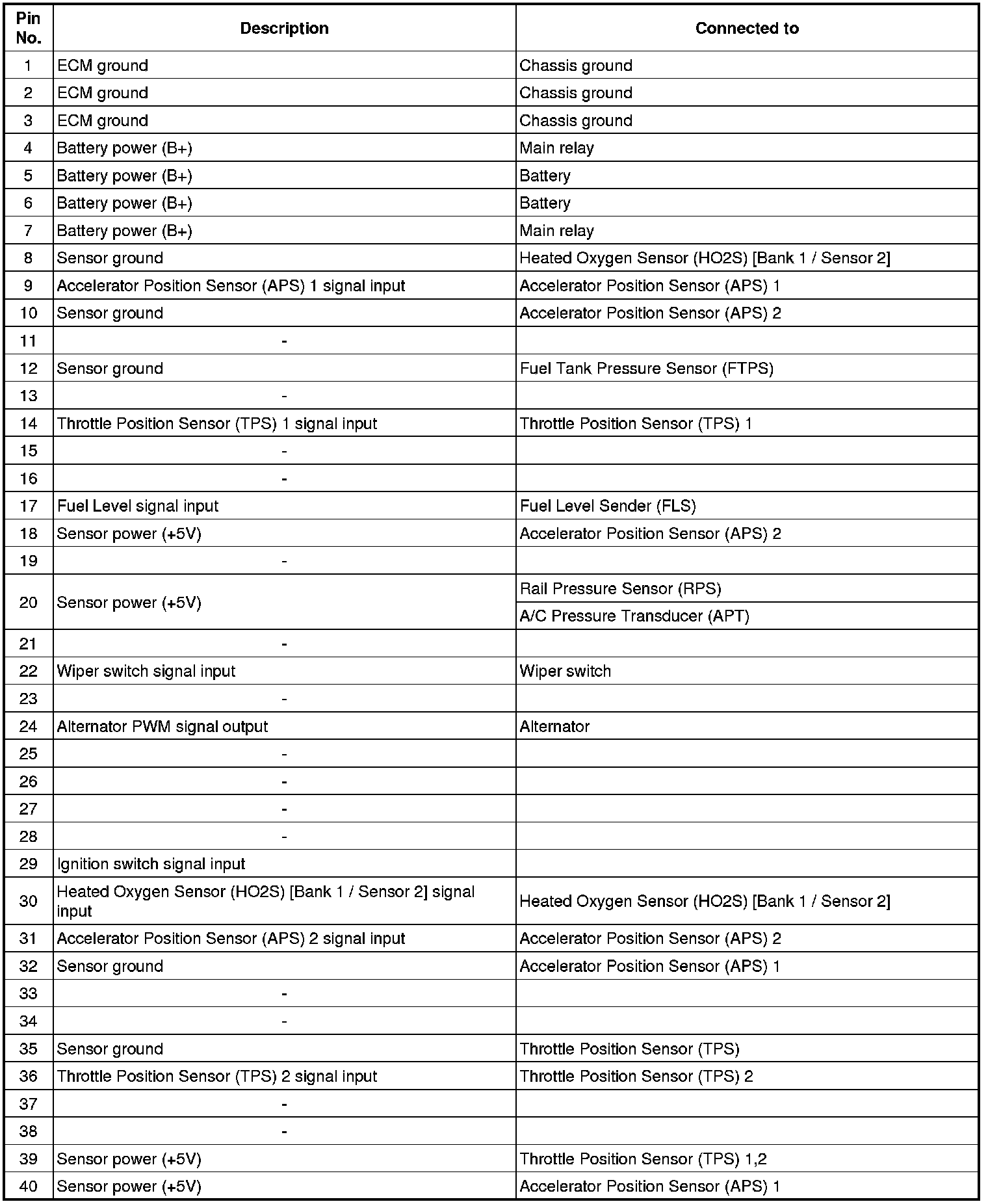

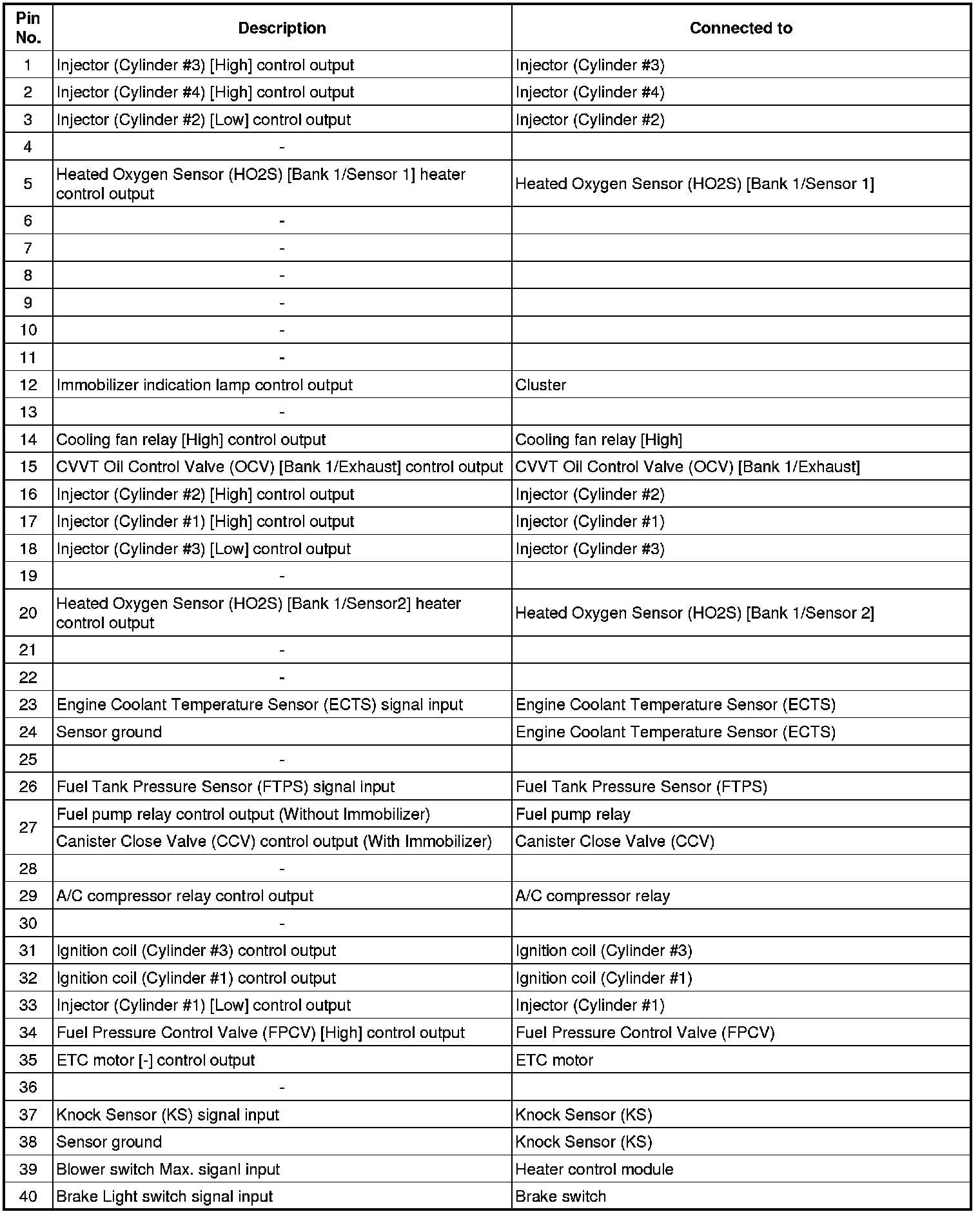

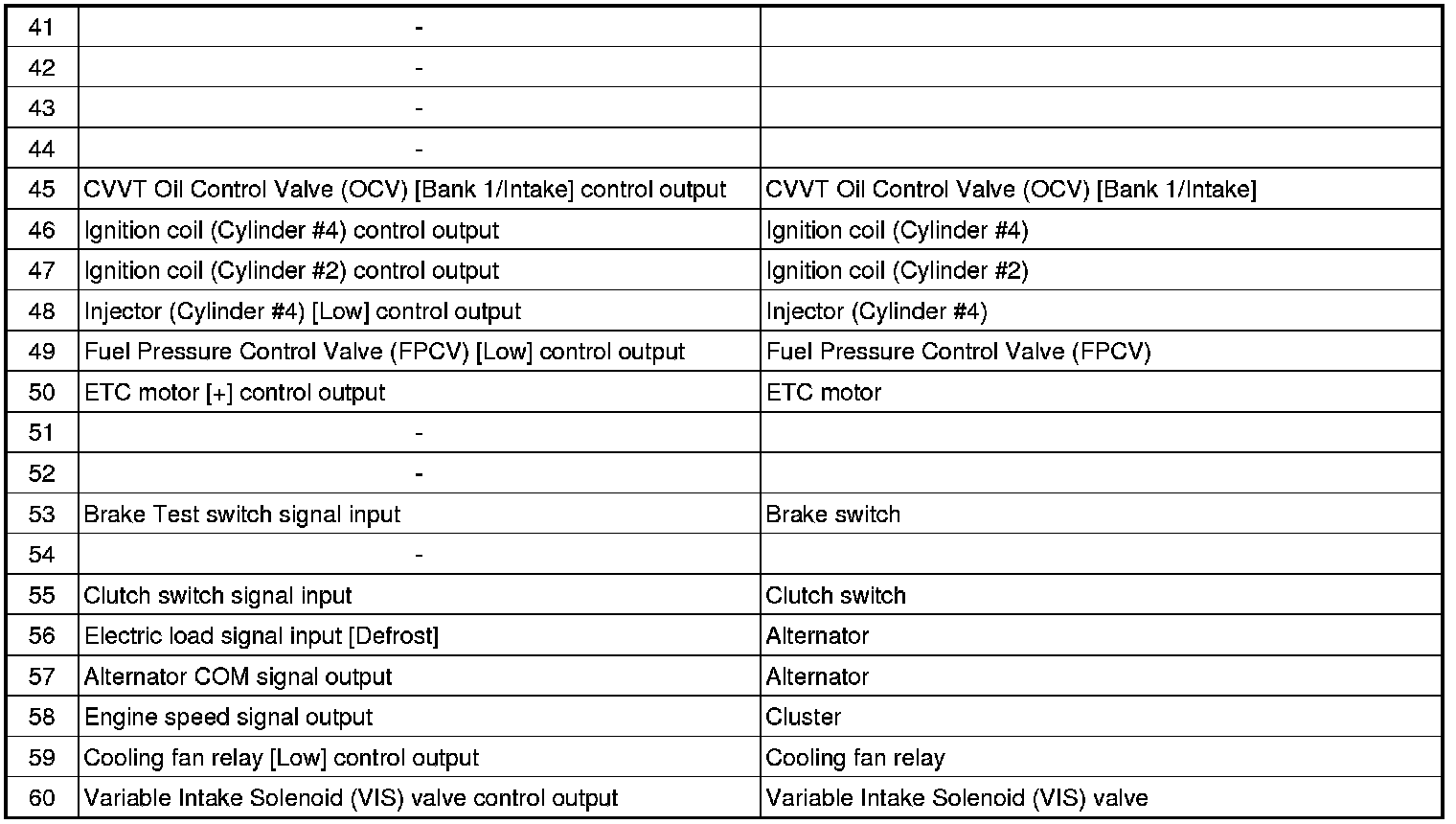

ECM Terminal Function

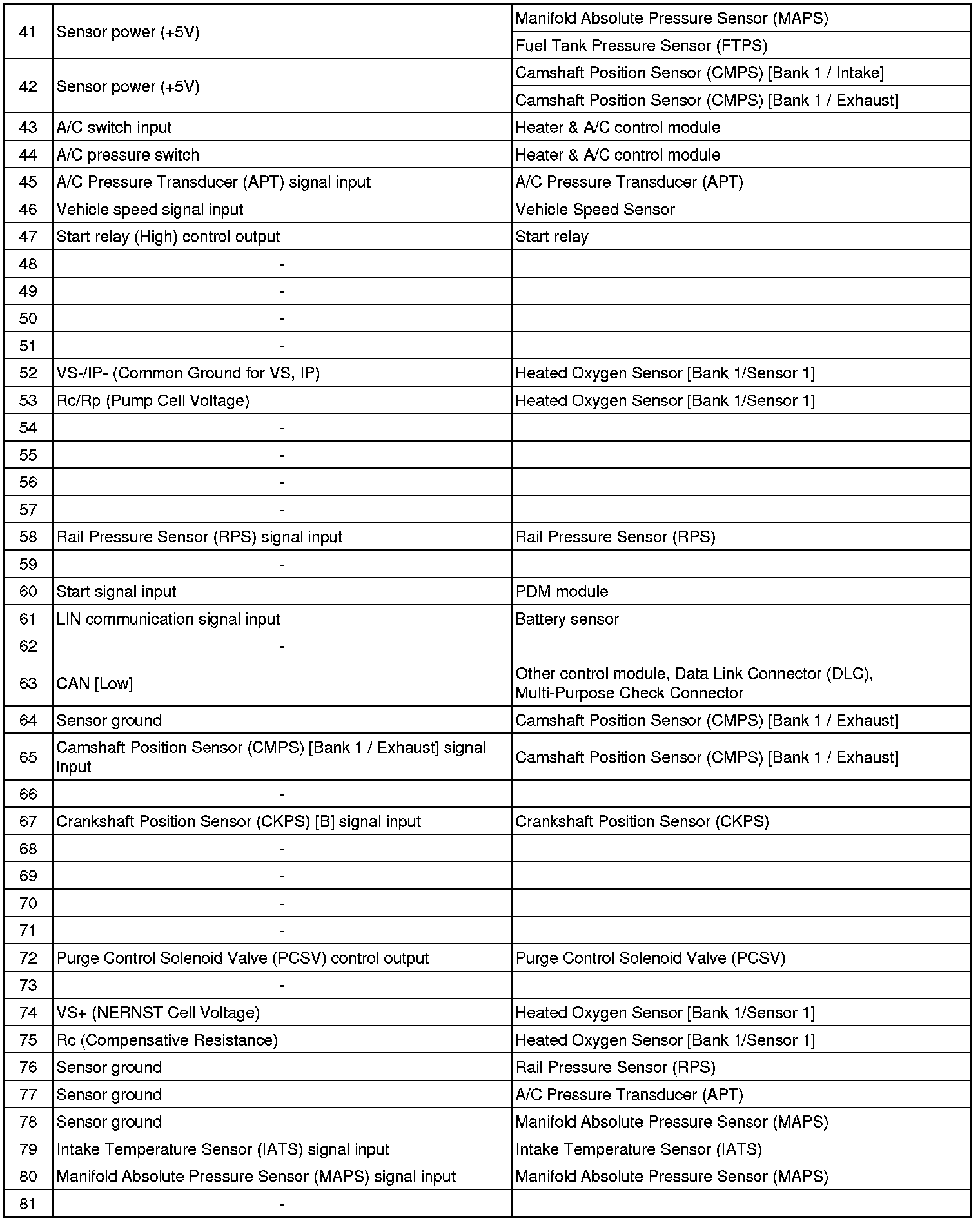

Connector [EGGM-A]









Connector [EGGM-K]

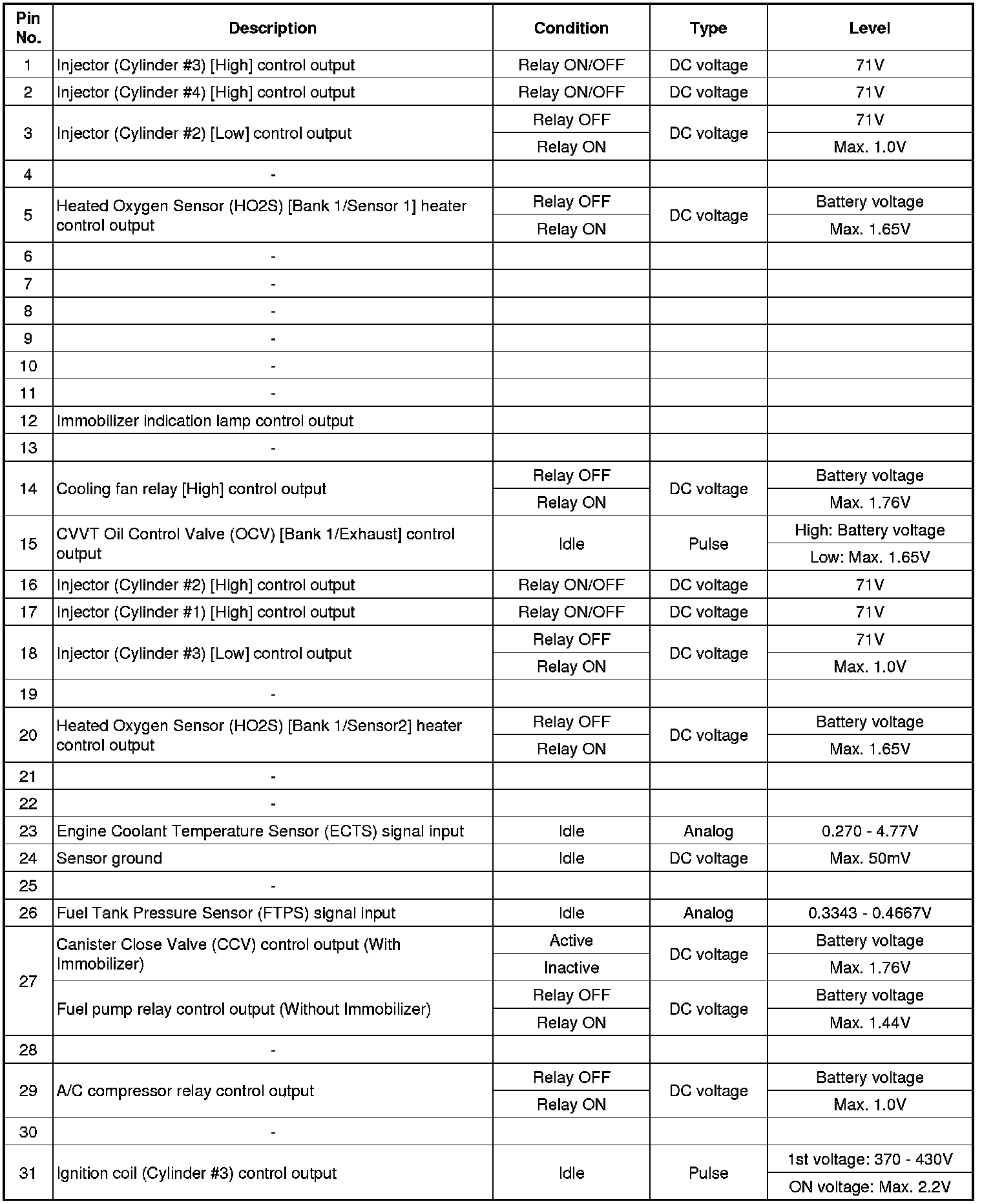

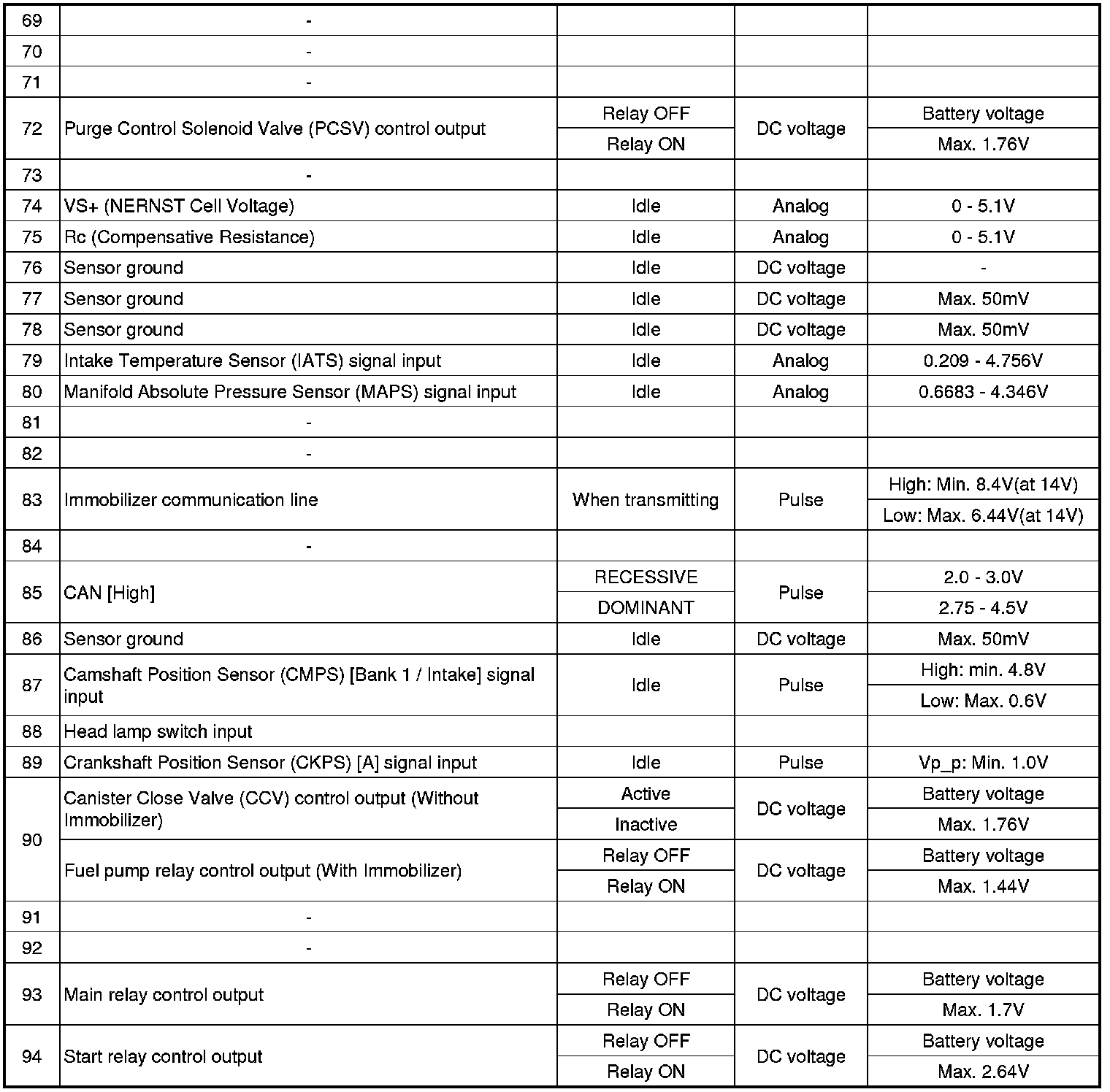

ECM Terminal Input/Output Signal

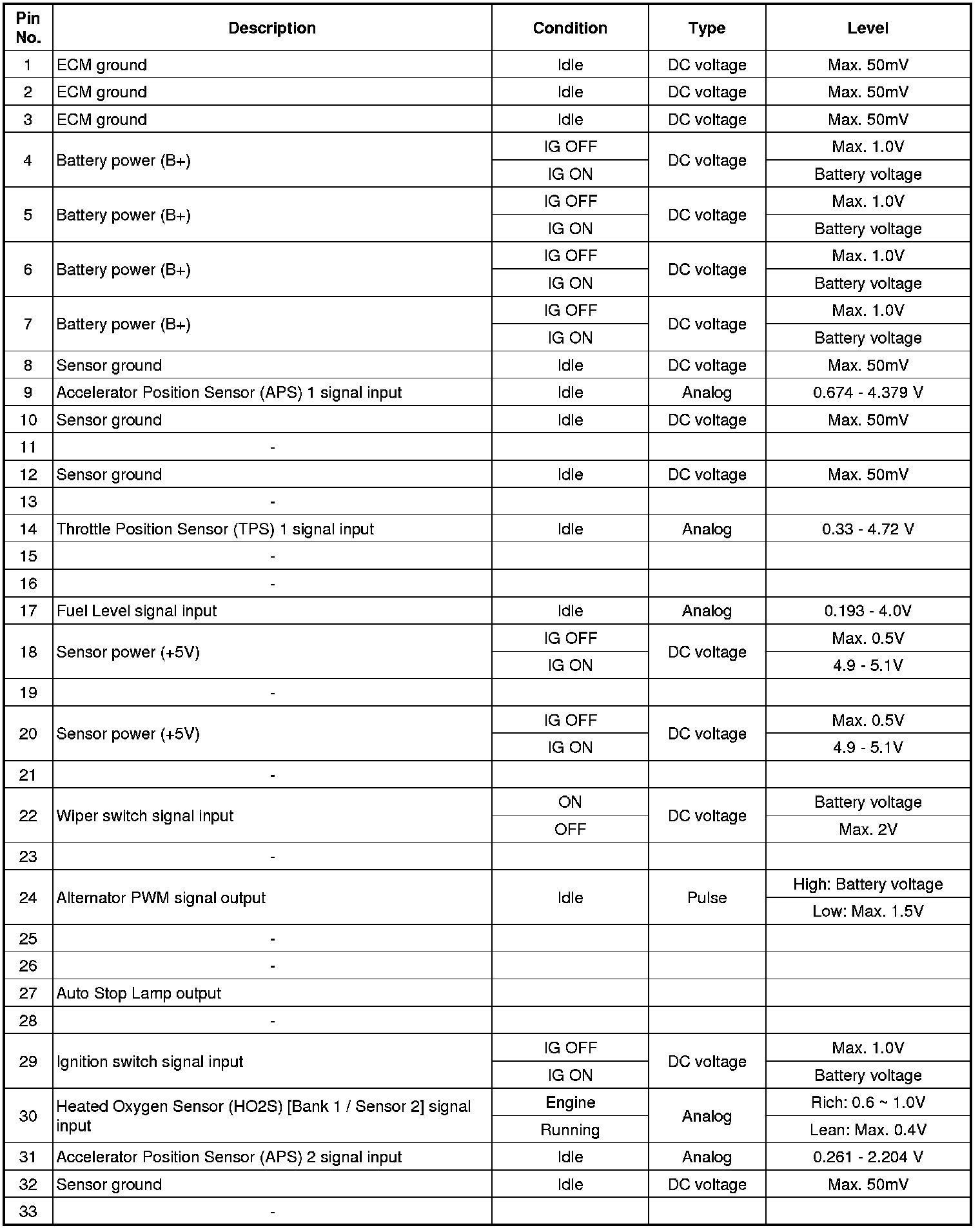

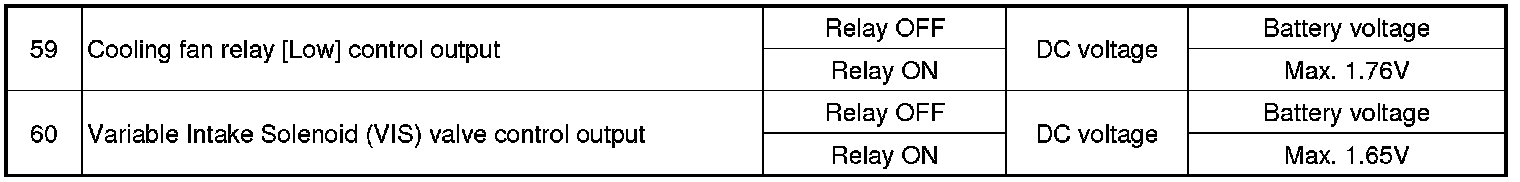

Connector [EGGM-A]

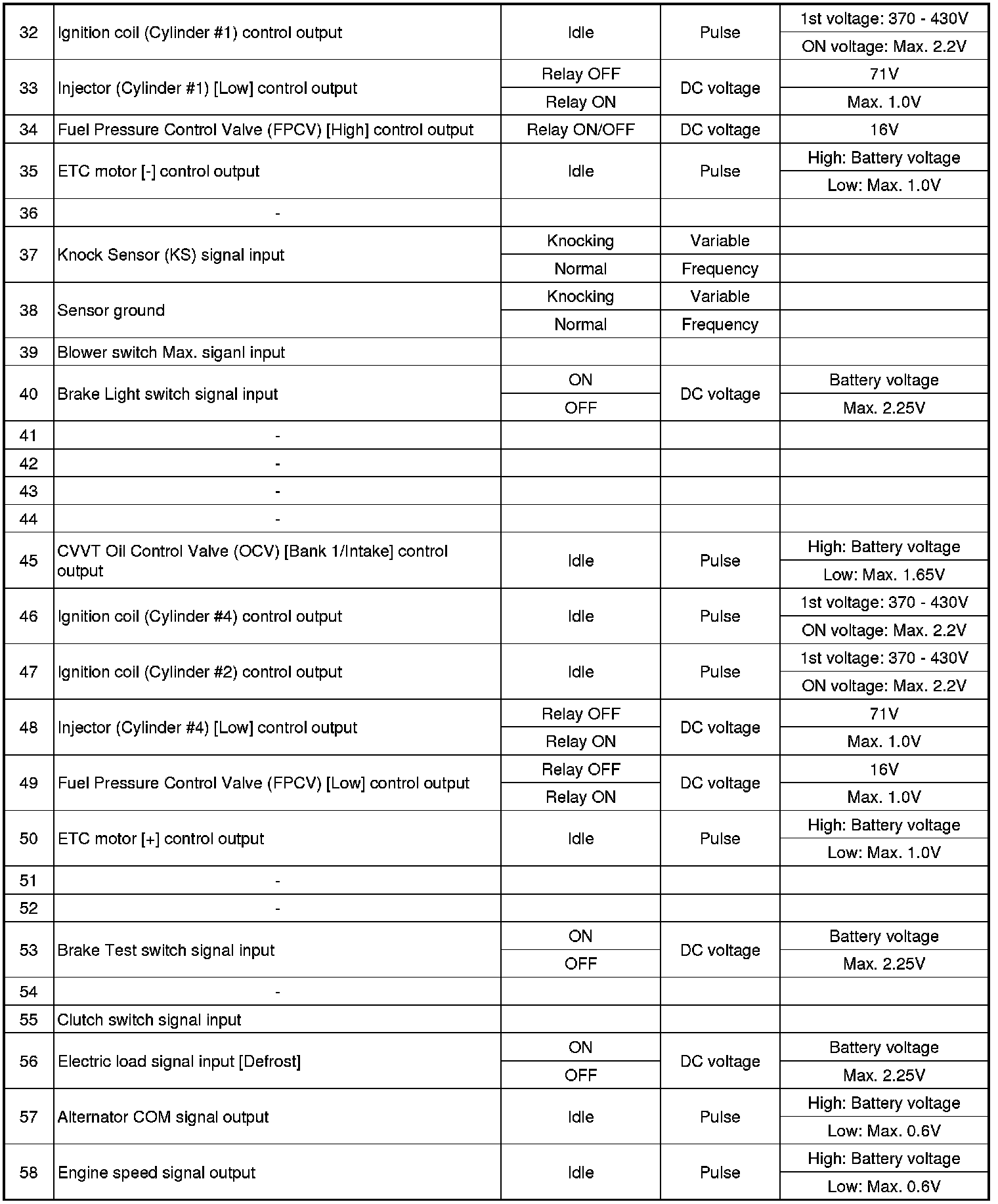

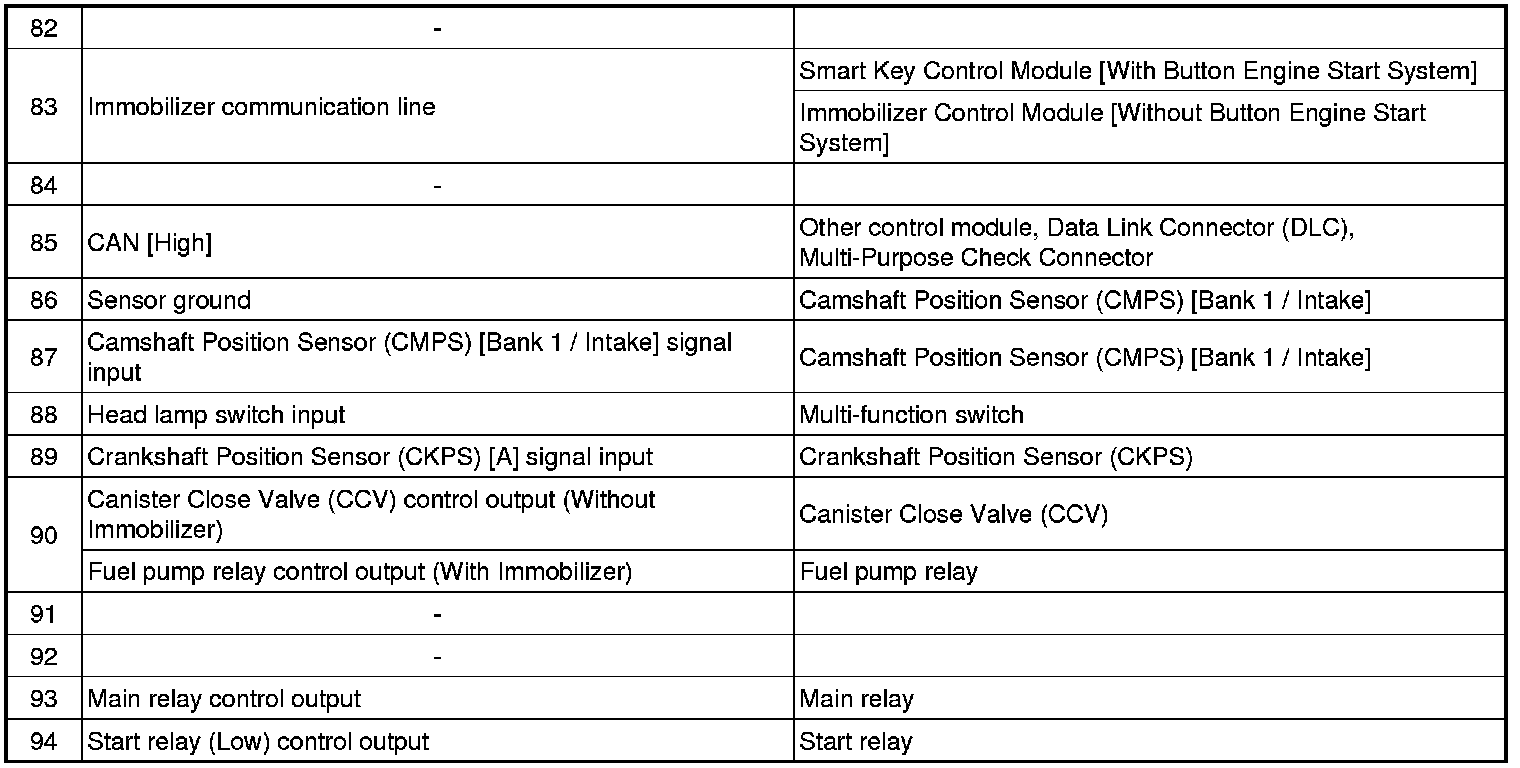

Connector [EGGM-K]

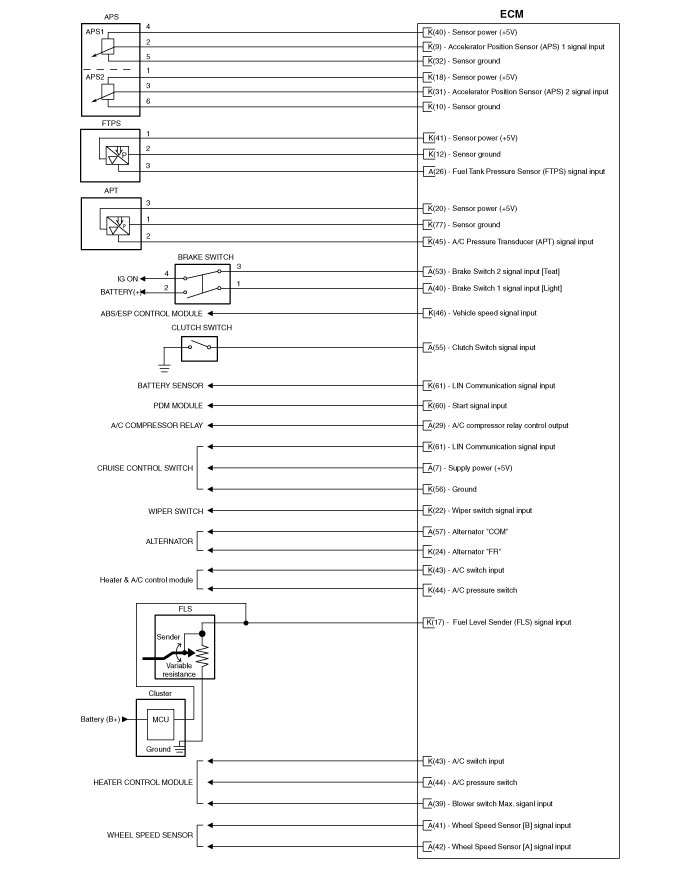

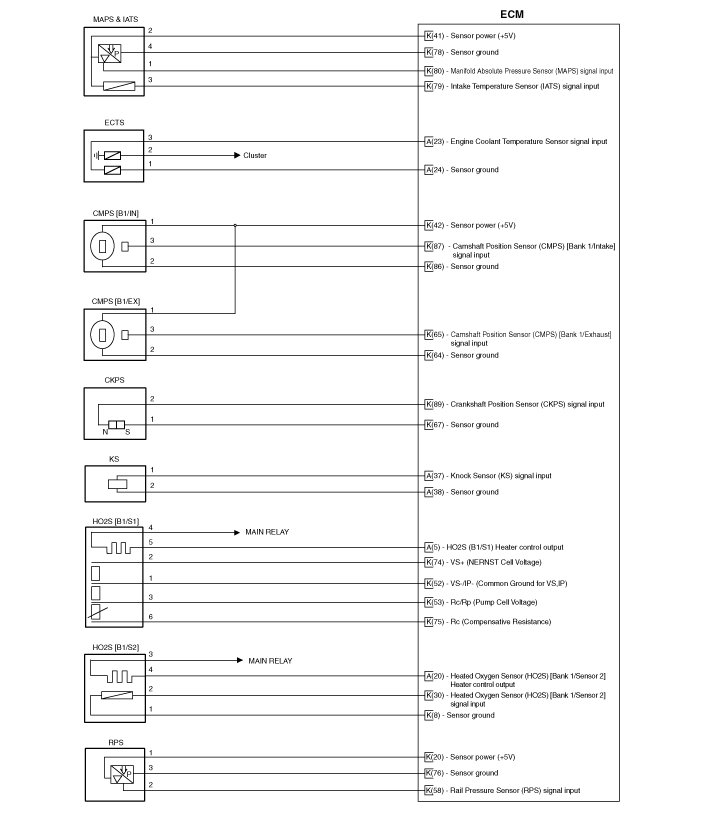

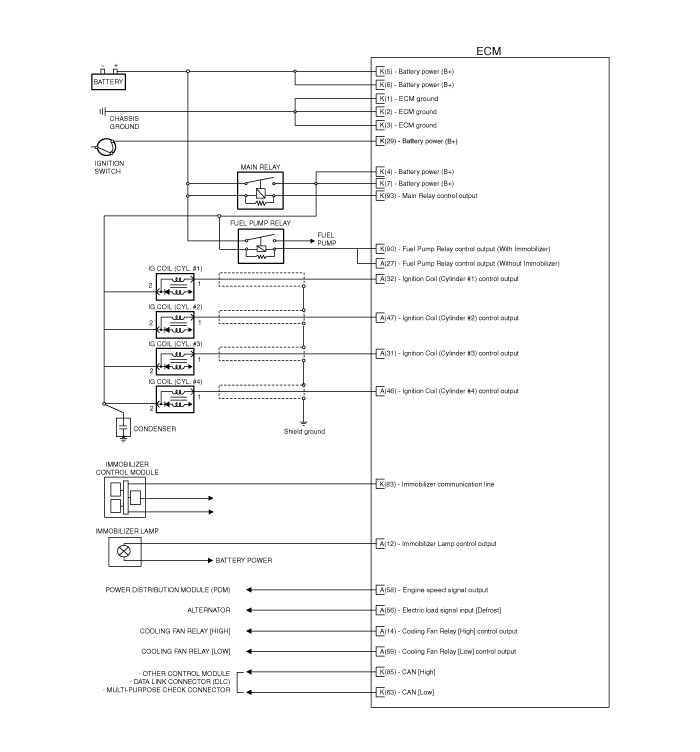

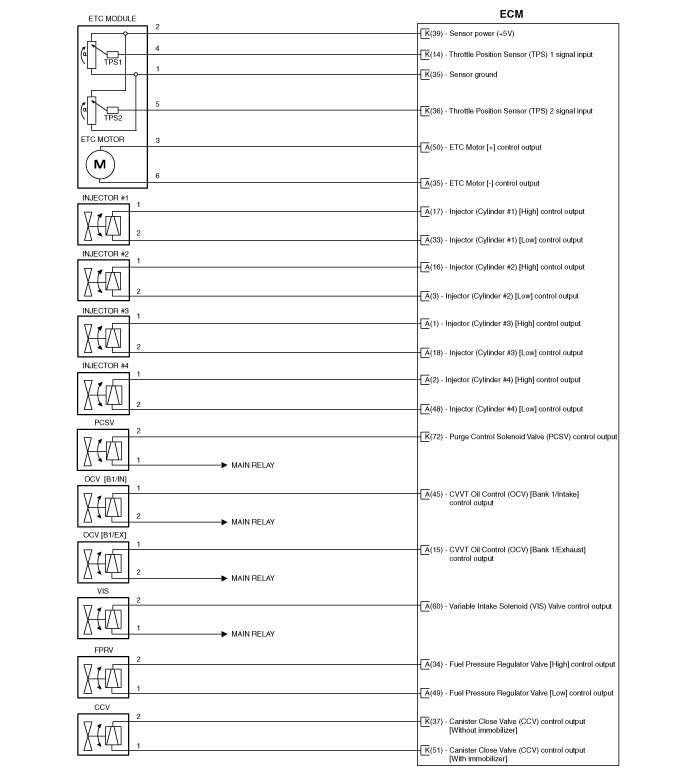

Circuit Diagram
