Component Location (1)

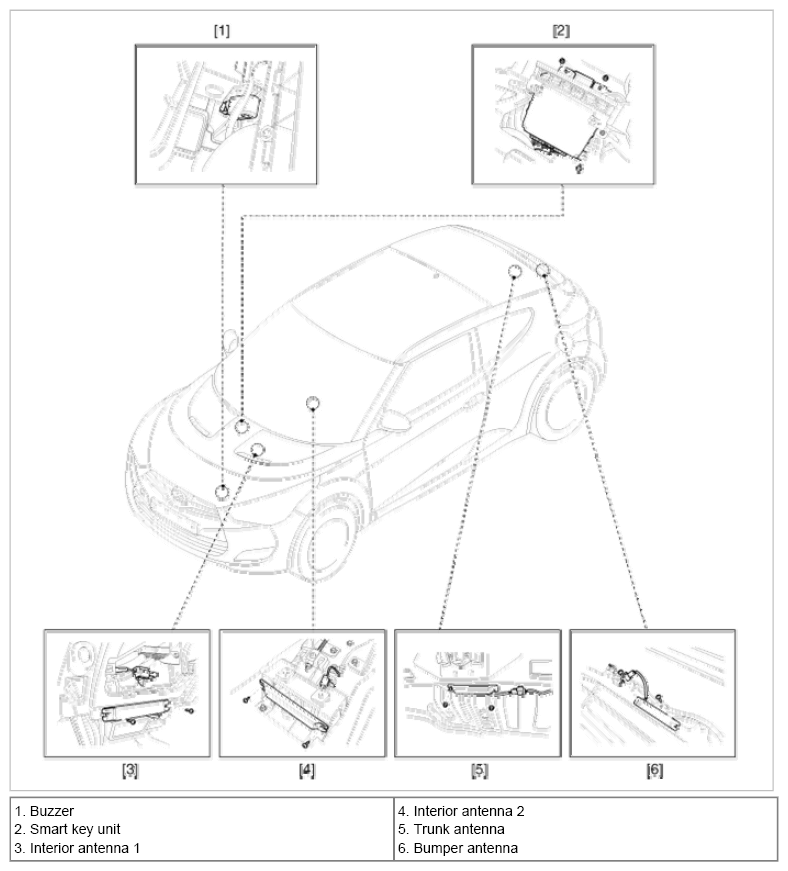

Fig 1: Smart Key System Components Location
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
