Smart Key Status Check

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
After IG ON, select the "SMK STATUS INFO".

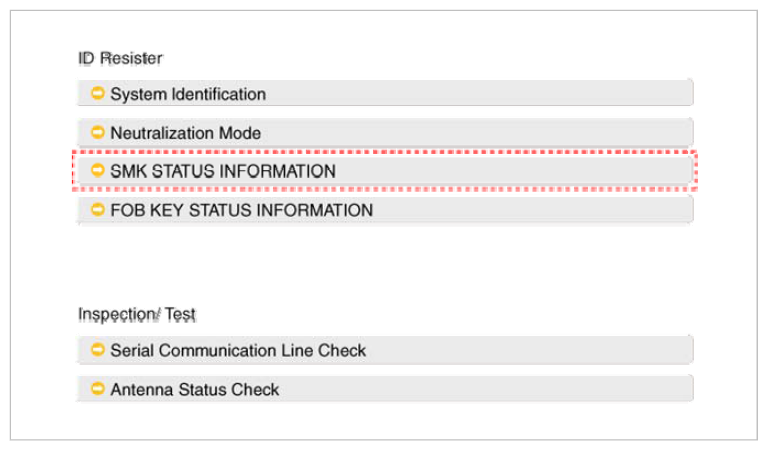

Fig 1: Display - SMK Status Info Selection Screen
Courtesy of HYUNDAI MOTOR AMERICA

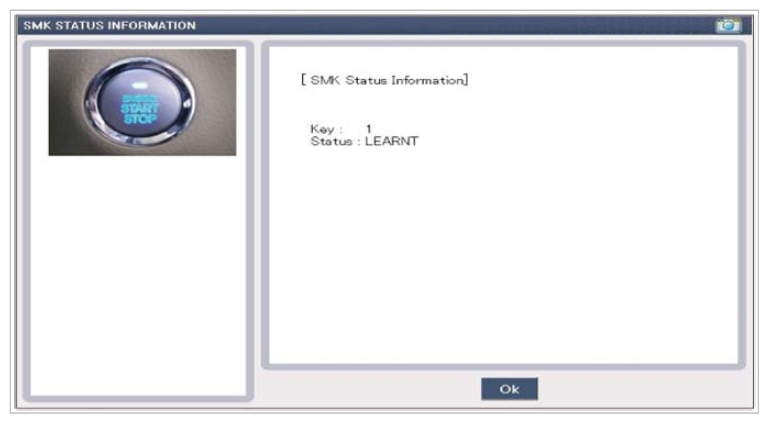

Fig 2: Display - SMK Status Info Screen
Courtesy of HYUNDAI MOTOR AMERICA
