Tailgate switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the tailgate outside handle (A) after loosening the mounting nut (3EA).

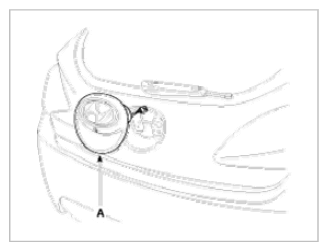

    Fig 1: Identifying Tailgate Outside Handle And Mounting Nut
    G08811554Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the tailgate switch assembly after loosening the screw (2EA).

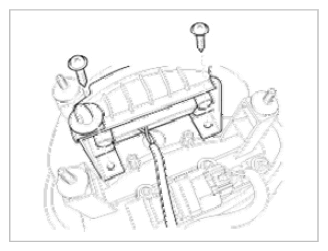

    Fig 2: Identifying Tailgate Switch Assembly And Screw
    G08811555Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the tailgate switch after loosening the screw (2EA).

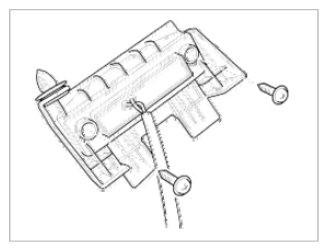

    Fig 3: Identifying Tailgate Switch And Screw
    G08811556Courtesy of HYUNDAI MOTOR AMERICA
