Smart Key Code Saving

Connect the DLC cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.

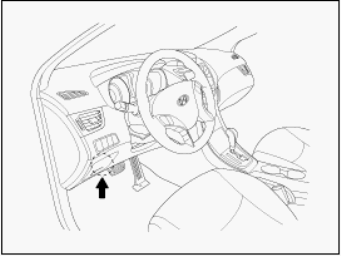

Fig 1: Locating Data Link Connector
Courtesy of HYUNDAI MOTOR AMERICA

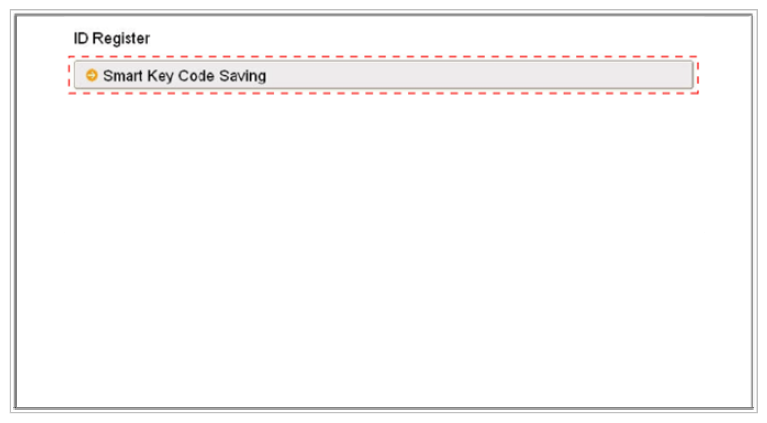

Select the vehicle model and then do "Smart key code saving".

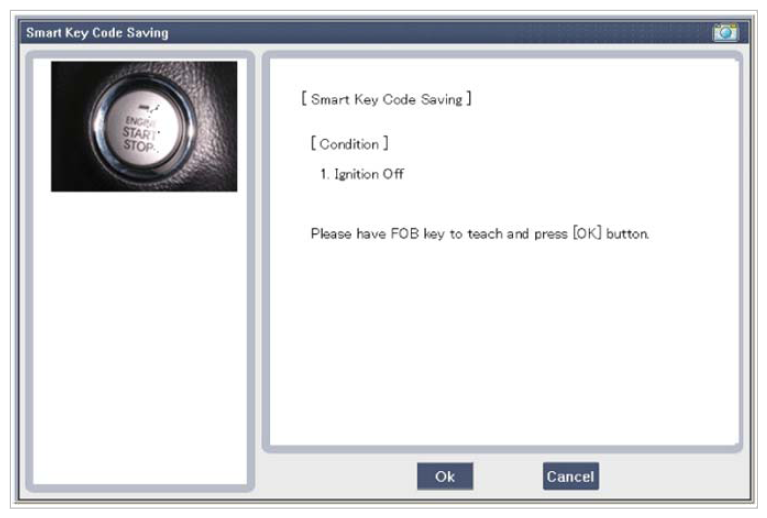

Fig 2: Display - Smart Key Code Saving Screen
Courtesy of HYUNDAI MOTOR AMERICA
After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.

Fig 3: Display - Smart Key Teaching Menu Screen
Courtesy of HYUNDAI MOTOR AMERICA
After pushing the SSB with the teaching key, press "OK" button.

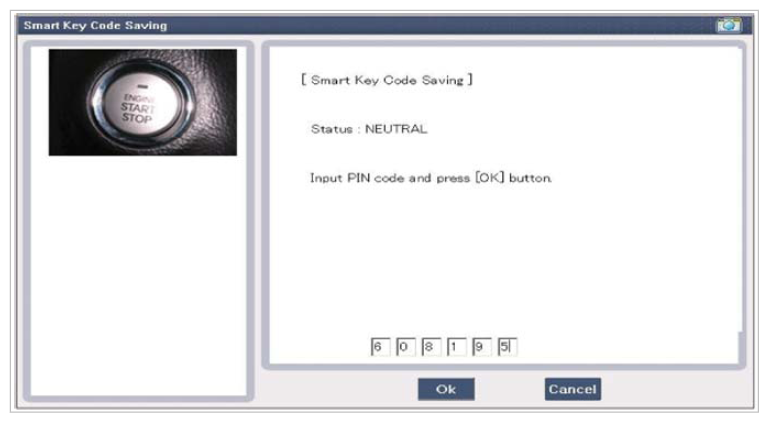

Input the "Pin code" for first key teaching.

Fig 4: Display - Smart Key Code Saving Screen With Pin Code
Courtesy of HYUNDAI MOTOR AMERICA

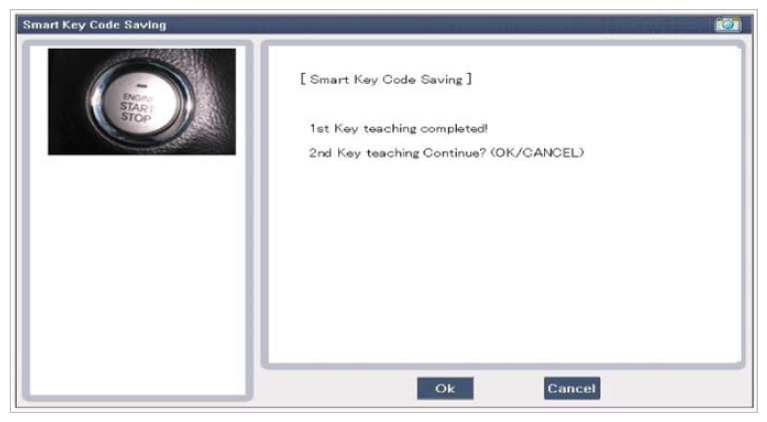

Fig 5: Display - Smart Key Code Saving Continue Message Screen
Courtesy of HYUNDAI MOTOR AMERICA
Confirm the message "First key teaching completed".

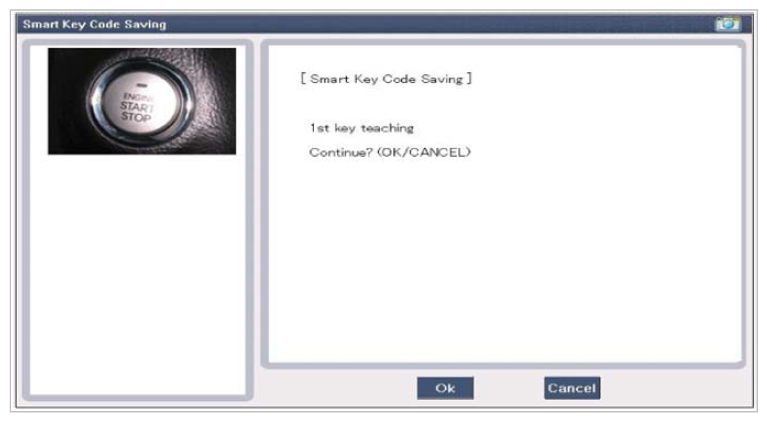

Fig 6: Display - First Key Teaching Continue Message Screen
Courtesy of HYUNDAI MOTOR AMERICA

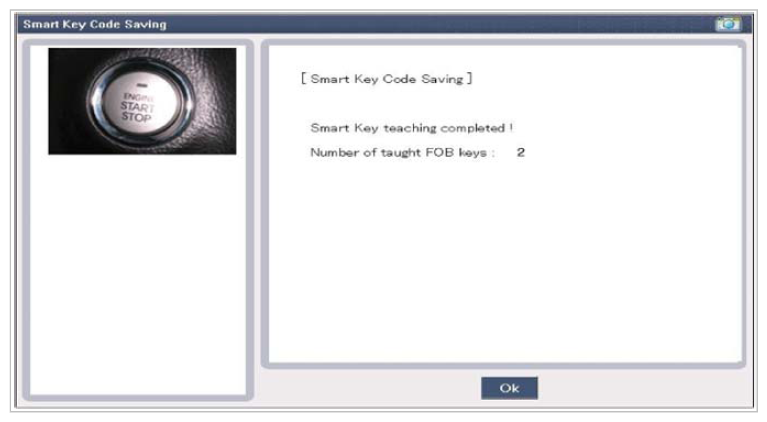

Fig 7: Display - Smart Key Teaching Completed Message Screen
Courtesy of HYUNDAI MOTOR AMERICA

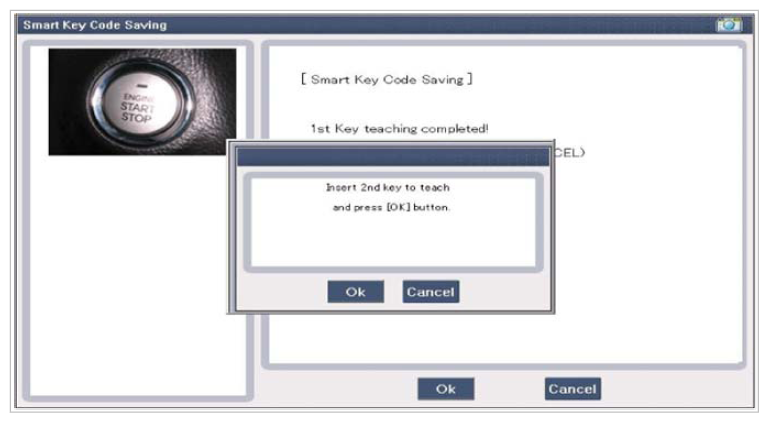

Fig 8: Display - Second Key Teaching Continue Confirmation Screen
Courtesy of HYUNDAI MOTOR AMERICA

Fig 9: Display - Smart Key Teaching Completed Message Screen
Courtesy of HYUNDAI MOTOR AMERICA
Confirm the message "Second key teaching completed".

Fig 10: Display - Second Key Teaching Completed Message
Courtesy of HYUNDAI MOTOR AMERICA
Then the screen will be shown as below when key teaching process is completed.
