Rear Console Cover Replacement
CAUTION:
- A plastic trim tool is recommended, but if prying with a screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

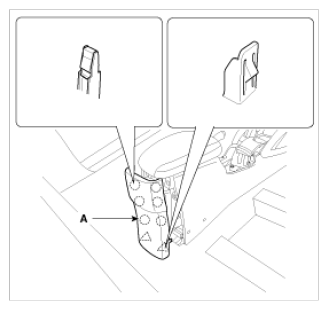

- Using a screwdriver or remover, remove the rear console cover (A).
- Installation is the reverse of removal.NOTE:
- Replace any damage clips.
