Audio assembly Replacement

CAUTION:

A plastic trim tool is recommended, but if prying with a screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Using a screwdriver or remover, remove the center facia panel (A).

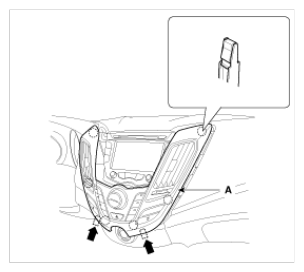

Fig 1: Identifying Center Facia Panel
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the heater control unit connectors (A).

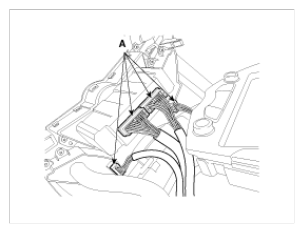

Fig 2: Identifying Heater Control Unit Connectors
Courtesy of HYUNDAI MOTOR AMERICA
After loosening the mounting screws, then remove the audio assembly (A).

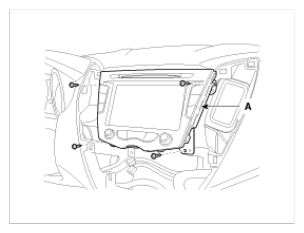

Fig 3: Identifying Audio Assembly And Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the audio connectors (A).

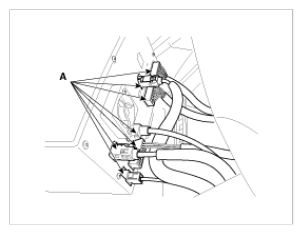

Fig 4: Identifying Audio Connectors
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE:
- Make sure the connectors are connected in properly.
- Replace any damaged clips.
