Sunvisor Replacement

CAUTION:
  • Use a plastic panel removal tool to remove interior trim pieces to without marring the surface.
  • Put on gloves to protect your hands.
  1. After loosening the mounting screws, then remove the sunvisor (A) and retainer (B).

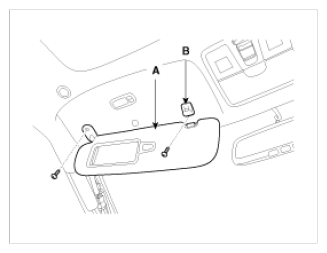

    Fig 1: Identifying Sunvisor, Retainer And Mounting Screws
    G08811250Courtesy of HYUNDAI MOTOR AMERICA
  2. Installation is the reverse of removal.
