Repair procedures: Disassembly

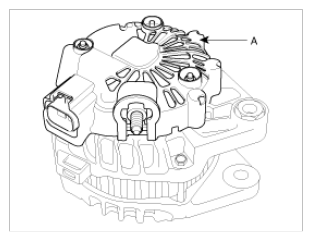

Remove the alternator cover (A).

Fig 1: Identifying Alternator Cover
Courtesy of HYUNDAI MOTOR AMERICA

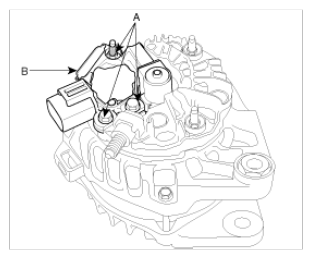

Loosen the mounting bolts (A) and disconnect the brush holder assembly (B).

Fig 2: Identifying Brush Holder Assembly And Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA
Remove the slip ring guide (A).

Fig 3: Identifying Slip Ring Guide
Courtesy of HYUNDAI MOTOR AMERICA

NOTE: When installing, replace with new OAD cap.

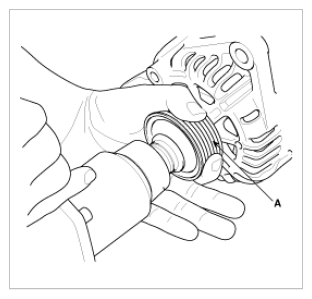

Remove the nut and pulley (A).

Fig 4: Removing Alternator Nut And Pulley
Courtesy of HYUNDAI MOTOR AMERICA

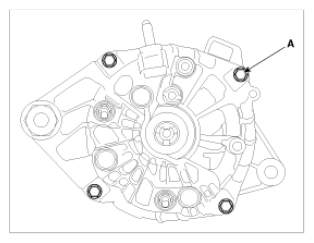

Loosen the 4 through bolts (A).

Fig 5: Identifying Alternator Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA

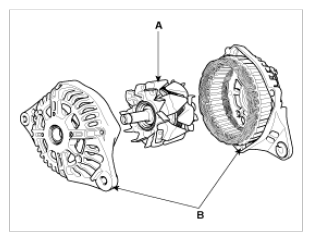

Disconnect the rotor (A) and cover (B).

Fig 6: Identifying Alternator Rotor And Cover
Courtesy of HYUNDAI MOTOR AMERICA
Reassembly is the reverse of disassembly.
