Components and Components Location: Components

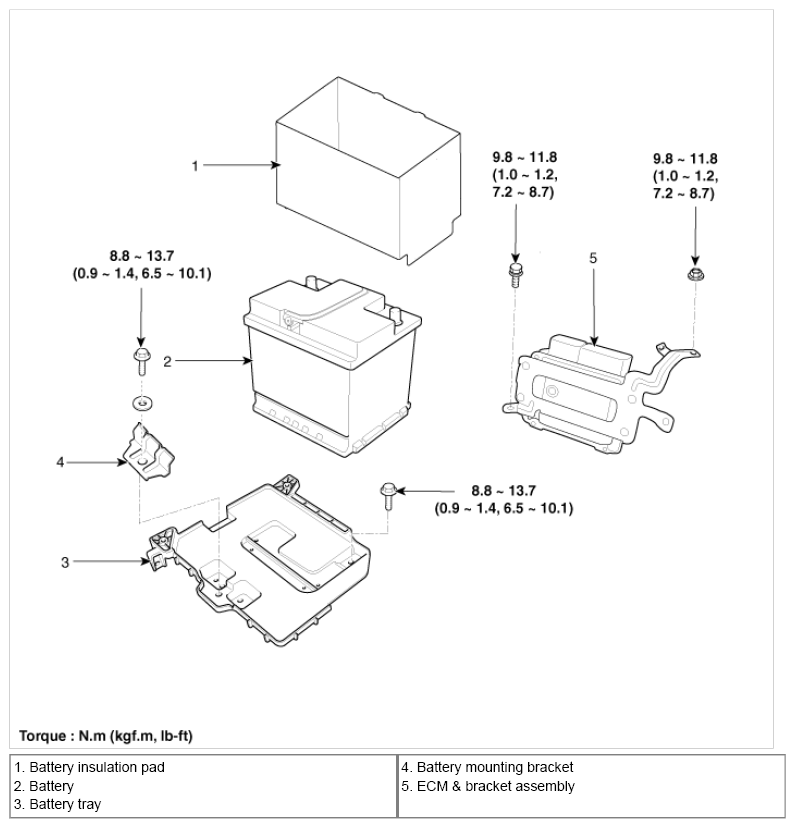

Fig 1: Battery Replacement Components With Torque Specifications
G08806885Courtesy of HYUNDAI MOTOR AMERICA
