Components and Components Location: Component

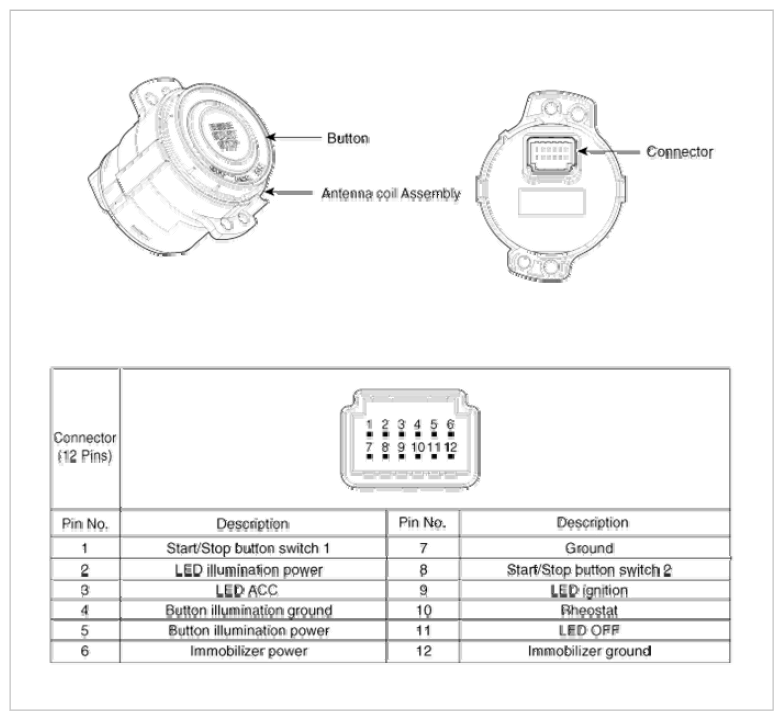

Fig 1: Start / Stop Button Components Location
G08811920Courtesy of HYUNDAI MOTOR AMERICA
