Repair procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the center fascia panel assembly (A).

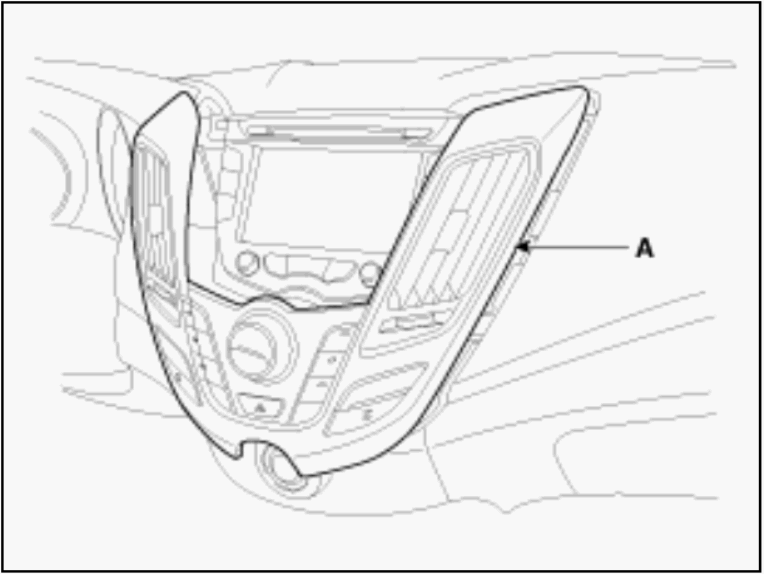

    Fig 1: Identifying Center Fascia Panel Assembly
    G08811921Courtesy of HYUNDAI MOTOR AMERICA
  3. Disconnect the connector after loosening 2 screws, and then remove the start/stop button (A).
    Fig 2: Identifying Start / Stop Button And Mounting Screws
    G08811922Courtesy of HYUNDAI MOTOR AMERICA
