Wave Form

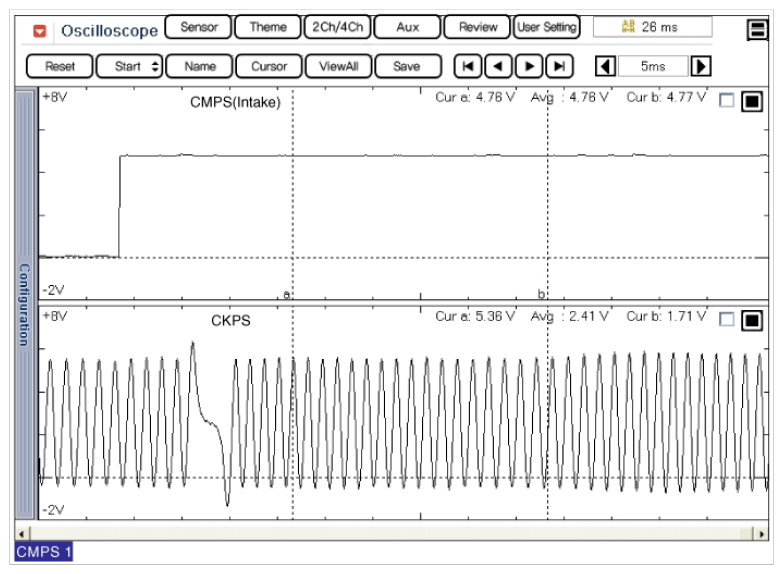

Fig 1: Camshaft Position Sensor Wave Form (1 Of 2)
G08807034Courtesy of HYUNDAI MOTOR AMERICA

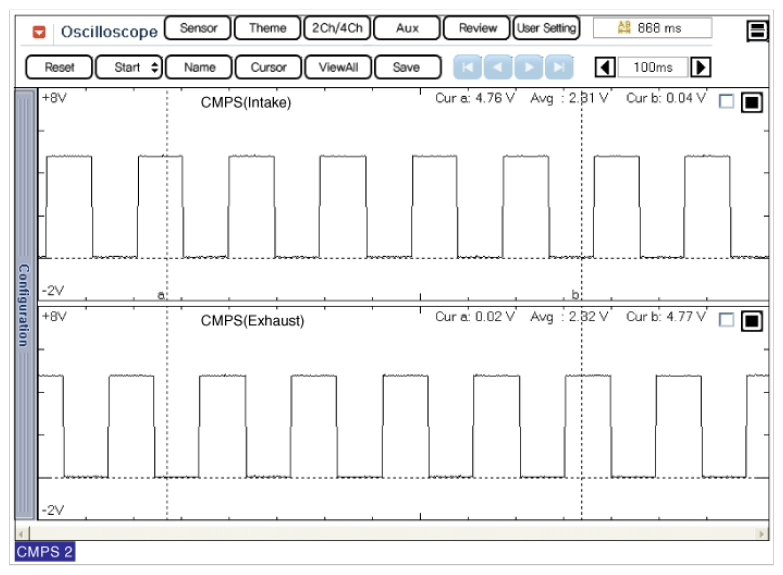

Fig 2: Camshaft Position Sensor Wave Form (2 Of 2)
G08807035Courtesy of HYUNDAI MOTOR AMERICA
