Repair procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Lift the vehicle.
  3. Disconnect the canister close valve connector (A).
  4. Disconnect the ventilation hose (B) from the fuel tank air filter and canister close valve.
  5. Remove the fuel tank air filter assembly after removing bolts (C).

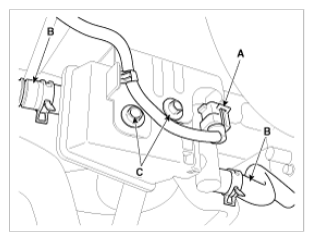

    Fig 1: Identifying Canister Close Valve Connector, Ventilation Hose And Mounting Bolts
    G08807093Courtesy of HYUNDAI MOTOR AMERICA
  6. Release the lever (A), and then separate the canister close valve (B) from the fuel tank air filter (C) after rotating it in the direction of the arrow in the figure.

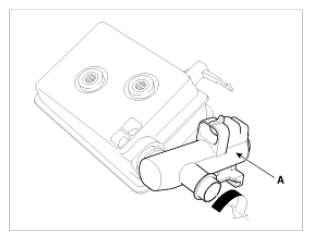

    Fig 2: Separating Canister Close Valve From Fuel Tank Air Filter
    G08807094Courtesy of HYUNDAI MOTOR AMERICA

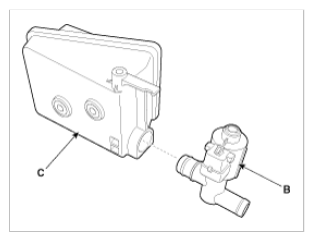

    Fig 3: Identifying Canister Close Valve And Fuel Tank Air Filter
    G08807095Courtesy of HYUNDAI MOTOR AMERICA
