Crankshaft Position Sensor (CKPS): Troubleshooting: Waveform: ISG

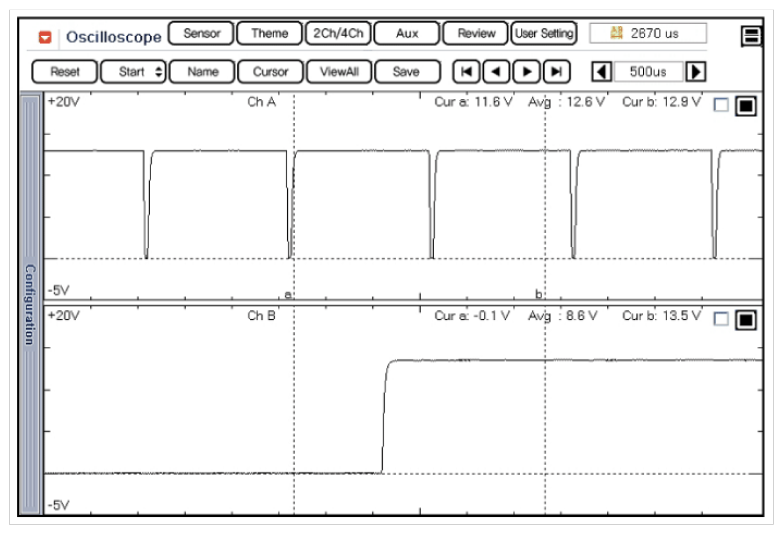

Fig 1: Crankshaft Position Sensor Waveform - ISG

Courtesy of HYUNDAI MOTOR AMERICA

This example shows a typical Crankshaft Position Sensor (CKPS) and Camshaft Position Sensor (CMPS) waveform at idle.
