Crankshaft Position Sensor (CKPS): Troubleshooting: Waveform: Non-ISG

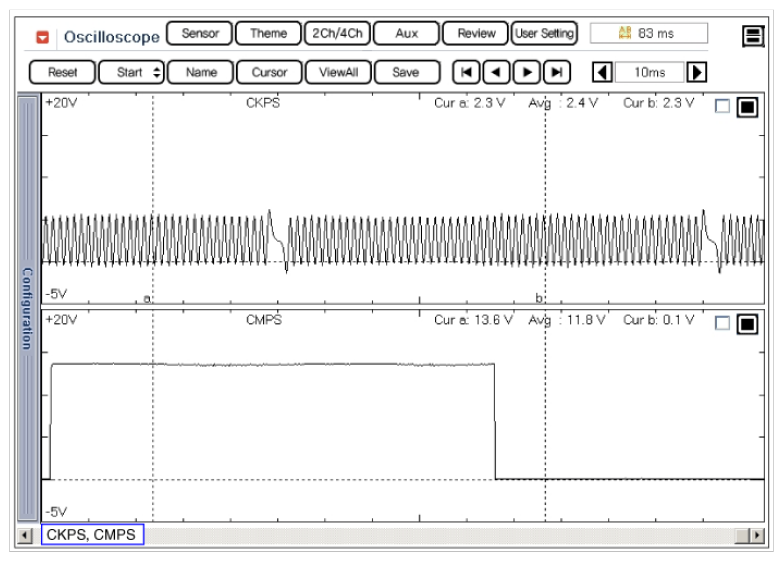

Fig 1: Crankshaft Position Sensor Waveform - NON-ISG (1 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

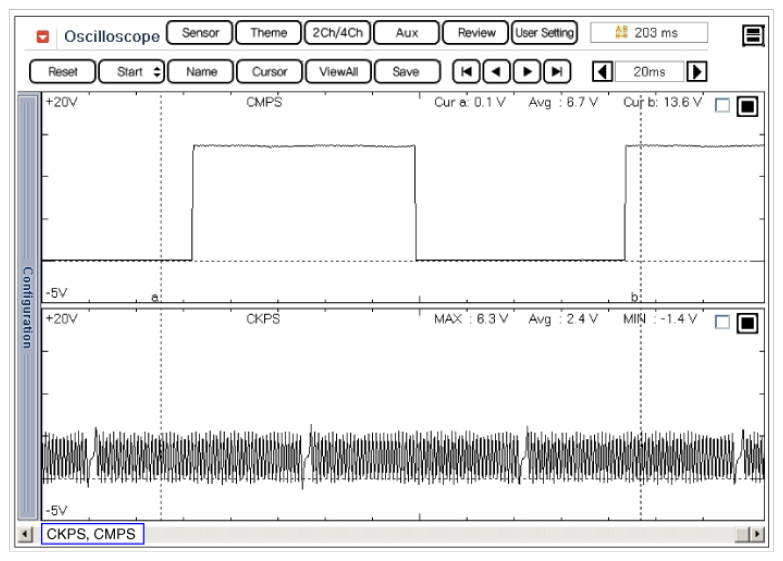

Fig 2: Crankshaft Position Sensor Waveform - NON-ISG (2 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

This example shows a typical Crankshaft Position Sensor (CkPS) and Camshaft Position Sensor (CMPS) waveform at idle. The PCM controls the injection and ignition timing by using these signals.

Generally CkPS signal is used to detect the piston's position and CMPS signal is used to detect the Top Dead Center of each cylinder.
