Repair procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the resonator and the air intake hose (Refer to "Intake And Exhaust System ").
  3. Disconnect the ETC module connector (A).

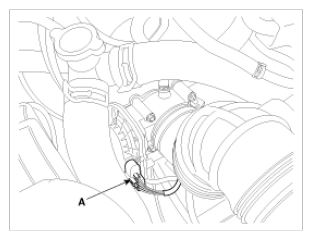

    Fig 1: Identifying ETC Module Connector
    G08807012Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the installation bolts, and then remove the ETC module (A) from the engine.

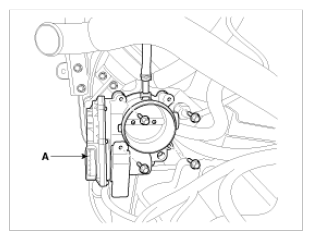

    Fig 2: Identifying ETC Module
    G08807013Courtesy of HYUNDAI MOTOR AMERICA
