Components Location: Notes

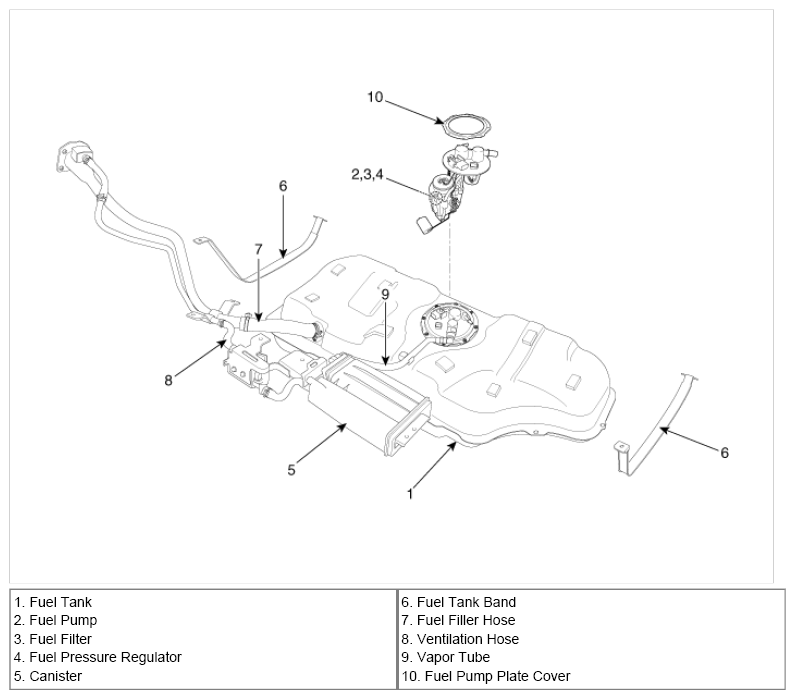

Fig 1: Identifying Fuel Delivery System Components
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
