Repair procedures: Installation

CAUTION:
  • Do not use already used injector fixing clip again.
CAUTION: Do not reuse the support disc.
Do not reuse the injector rubber washer.
Do not reuse the combustion seal.
CAUTION:
  • Install the component with the specified torques.
  • Note that internal damage may occur when the component is dropped. In this case, use it after inspecting.
CAUTION:
  • Apply engine oil to the injector O-ring.
  • Do not use already used injector O-ring again.
CAUTION:
  • Do not use already used bolt again.
CAUTION:
  • When insert the injector, be careful not to damage the injector tip.
  1. Installation is reverse of removal.

    Delivery pipe installation bolt:

    18.6 ~ 23.5 N.m (1.9 ~ 2.4 kgf.m, 13.7 ~ 17.4 lb-ft)

    High pressure fuel pipe installation nut:

    26.5 ~ 32.4 N.m (2.7 ~ 3.3 kgf.m, 19.5 ~ 23.9 lb-ft)



WARNING:
  • Be sure to check the low pressure fuel hose quick-connector (A) is completely connected to the high pressure fuel pump until a confirmation 'click' sound is heard.
  • Be sure to re-check the low pressure fuel hose is completely connected to the high pressure fuel pump by pulling it after connecting.
  • Be sure to install the high pressure fuel pipe (B) with the specified torques.
  • Because fuel leak may cause fire, securely Inspect leakage of all fuel line connection parts at engine start condition.

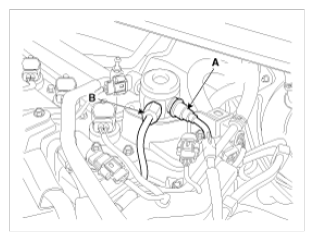

Fig 1: Identifying High Pressure Fuel Pipe And Fuel Hose Quick Connector
G08807132Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
  • Before installing the high pressure fuel pump, position the roller tappet in the lowest position by rotating the crankshaft. Otherwise the installation bolts may be broken because of tension of the pump spring.
CAUTION:
  • Be careful to be free from foreign materials when assembling.
CAUTION:
  • Do not reuse the used bolt.
CAUTION:
  • Do not reuse the used high pressure fuel pipe.
CAUTION:
  • When tightening the installation bolts of the high pressure fuel pump, tighten in turn the bolts in small step (0.5 turns) after tightening them with hand-screwed torque.
CAUTION:
  • Install the component with the specified torques.
  • First hand-tighten the fasteners fully until they are not fastened any more in order to have them inserted in place and then completely tighten to the specified torque using a torque wrench.

    If not tightening the bolts or nuts in a straight line with the mating bolt holes or fittings, it may cause a fuel leak due to broken threads.

CAUTION:
  • Note that internal damage may occur when the component is dropped. In this case, use it after inspecting.
CAUTION:
  • Apply engine oil to the O-ring (A) of the high pressure fuel pump, the roller tappet (B), and the protrusion (C). Also apply engine oil to the groove on the location where the protrusion (C) is installed.

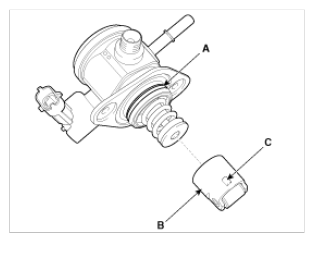

Fig 2: Identifying High Pressure Fuel Pump O-Ring, Roller Tappet And Protrusion
G08807133Courtesy of HYUNDAI MOTOR AMERICA
  1. Installation is reverse of removal.
    NOTE: Use the special service tool [SST No.: 09314-3Q100 or 09314-27130] to install the high pressure fuel pipe.

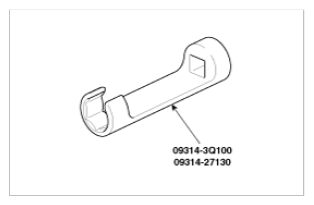

    Fig 3: Identifying Special Service Tool
    G08807134Courtesy of HYUNDAI MOTOR AMERICA

    High pressure fuel pump installation bolt:

    12.8 ~ 14.7 N.m (1.3 ~ 1.5 kgf.m, 9.4 ~ 10.9 lb-ft)

    High pressure fuel pipe installation nut:

    26.5 ~ 32.4 N.m (2.7 ~ 3.3 kgf.m, 19.5 ~ 23.9 lb-ft)

    High pressure fuel pipe function block installation bolt:  9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)
