Repair procedures: Removal

  1. Open the fuel filler door, and then remove the filler-neck assembly mounting screws (A).

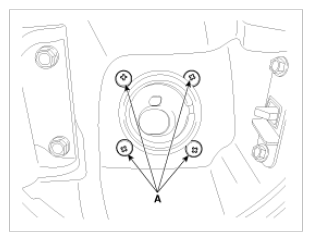

    Fig 1: Identifying Filler-Neck Assembly Mounting Screws
    G08807119Courtesy of HYUNDAI MOTOR AMERICA
  2. Disconnect the fuel filler hose (A) and the ventilation hose (B).
  3. Remove the filler-neck assembly from the vehicle after removing the bracket mounting bolt (C).

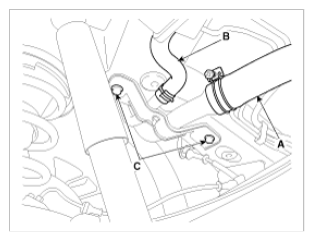

    Fig 2: Identifying Fuel Filler And Ventilation Hose, Bracket Mounting Bolts
    G08807120Courtesy of HYUNDAI MOTOR AMERICA
