Repair procedures: Removal

  1. Release the residual pressure in fuel line (Refer to "RELEASE RESIDUAL PRESSURE IN FUEL LINE " in this group).
  2. Remove the rear seat [LH] (Refer to "Seat ").
  3. Remove the fuel pump service cover (A).

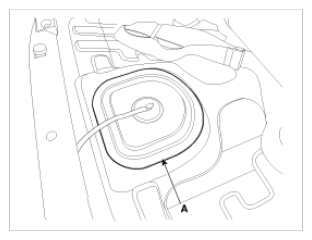

    Fig 1: Identifying Fuel Pump Service Cover
    G08807100Courtesy of HYUNDAI MOTOR AMERICA
  4. Disconnect the fuel pump connector (A).
  5. Disconnect the fuel feed tube quick connector (B).
  6. Disconnect the fuel tank pressure sensor connector (C).
  7. Disconnect the vapor tube (D).

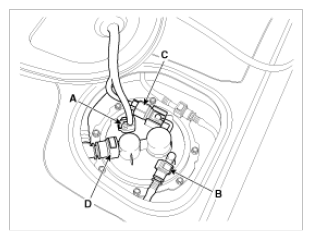

    Fig 2: Identifying Fuel Pump And Feed Tube Quick Connector, Tank Pressure Sensor Connector And Vapor Tube
    G08807101Courtesy of HYUNDAI MOTOR AMERICA
  8. Lift the vehicle and support the fuel tank with a jack.
  9. Remove the center muffler assembly (Refer to "Intake And Exhaust System ").
  10. Disconnect the fuel filler hose (A).

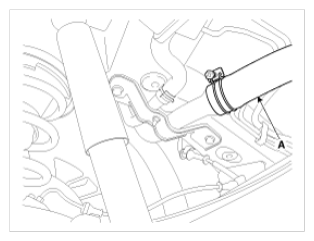

    Fig 3: Identifying Fuel Filler Hose
    G08807102Courtesy of HYUNDAI MOTOR AMERICA
  11. Remove the under cover (A) and the parking brake line installation bolt (B).

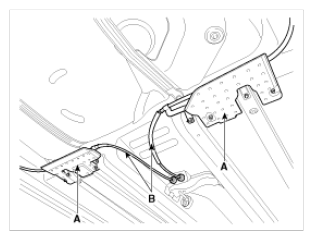

    Fig 4: Identifying Under Cover And Parking Brake Line Installation Bolt
    G08807103Courtesy of HYUNDAI MOTOR AMERICA
  12. Remove the fuel tank from the vehicle after removing the fuel tank band (A).

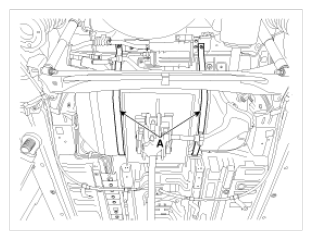

    Fig 5: Identifying Fuel Tank And Band
    G08807104Courtesy of HYUNDAI MOTOR AMERICA
