Components and Components Location: Components

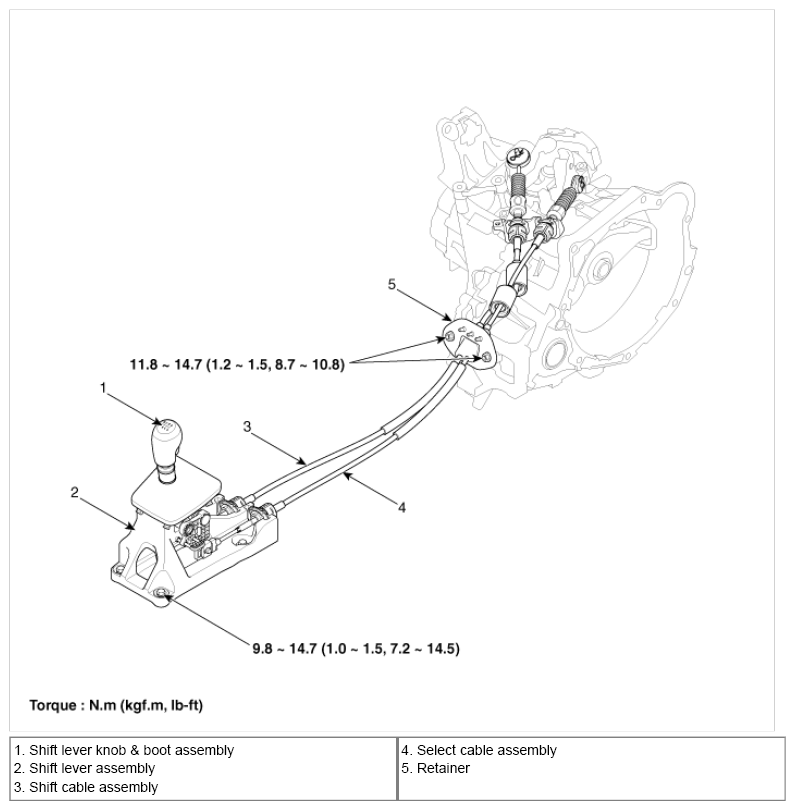

Fig 1: Shift Lever Replacement Components With Torque Specifications
G08807185Courtesy of HYUNDAI MOTOR AMERICA
