Select/Shift Cable Replacement

Remove the floor Interior console assembly.
(Refer to "INTERIOR (CONSOLE) ")

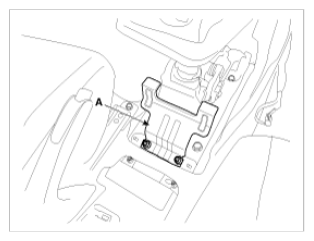

Remove the cover (A).

Fig 1: Identifying Floor Interior Console Assembly Cover
Courtesy of HYUNDAI MOTOR AMERICA

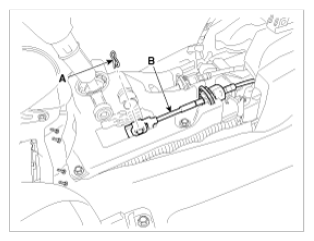

Remove the select cable (B) by removing the snap pin (A).

Fig 2: Identifying Select Cable And Snap Pin
Courtesy of HYUNDAI MOTOR AMERICA

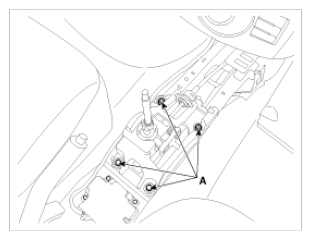

Remove the shift lever assembly (B) by removing the bolts (A-4ea).
Tightening torque:

9.8 ~ 14.7 N.m (1.0 ~ 1.5 kgf.m, 7.2 ~ 14.5 lb-ft)

Fig 3: Identifying Shift Lever Assembly Mounting Bolts (4EA)
Courtesy of HYUNDAI MOTOR AMERICA

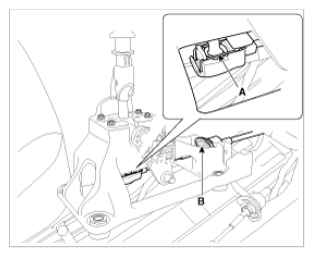

Remove the shift cable (B) by removing the clip (A).

Fig 4: Identifying Shift Cable And Clip
Courtesy of HYUNDAI MOTOR AMERICA

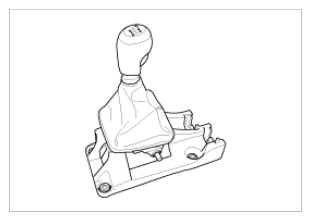

Fig 5: Identifying Shift Lever Assembly
Courtesy of HYUNDAI MOTOR AMERICA

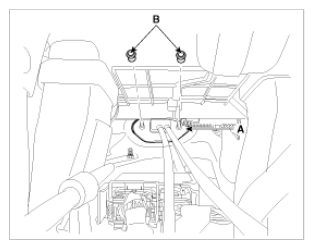

Remove the retainer (A) and nuts (B-2ea).
Tightening torque:

11.8 ~ 14.7 N.m (1.2 ~ 1.5 kgf.m, 8.7 ~ 10.8 lb-ft)

Fig 6: Identifying Retainer And Nuts (2EA)
Courtesy of HYUNDAI MOTOR AMERICA

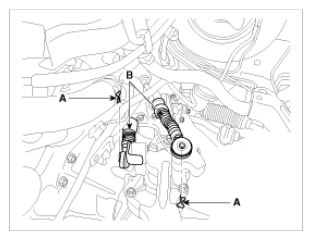

Disconnect the select and shift cable assembly (B) after removing the pin (A).

Fig 7: Identifying Select And Shift Cable Assembly And Pin
Courtesy of HYUNDAI MOTOR AMERICA
Remove the shift cable and select cable at cabin room.
Installation is the reverse of removal.
