Adjusting the control cable
- Set room side AT lever (shift lever) and automatic transaxle side manual control lever to "N" position.
- Connect control cable to room side AT lever (shift lever).

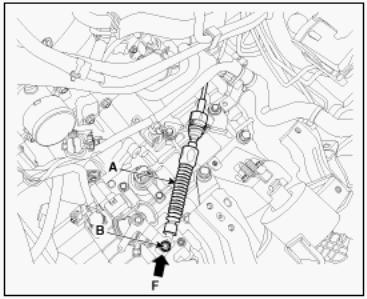

- Fix temporary control cable (A) in automatic transaxle side manual control lever.
- Push the control cable (A) lightly to "F" direction shown to eliminate the free play.
- Tighten the adjusting nut (B).
