Control Module: Diagrams

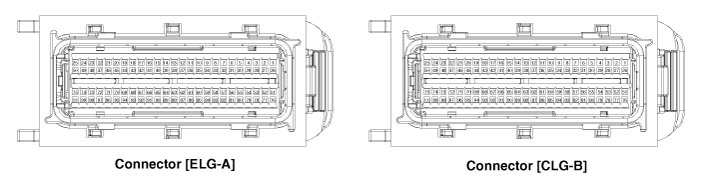

TCM connector and terminal function





TCM Terminal Function

Connector [ELG-A]









Connector [CLG-B]

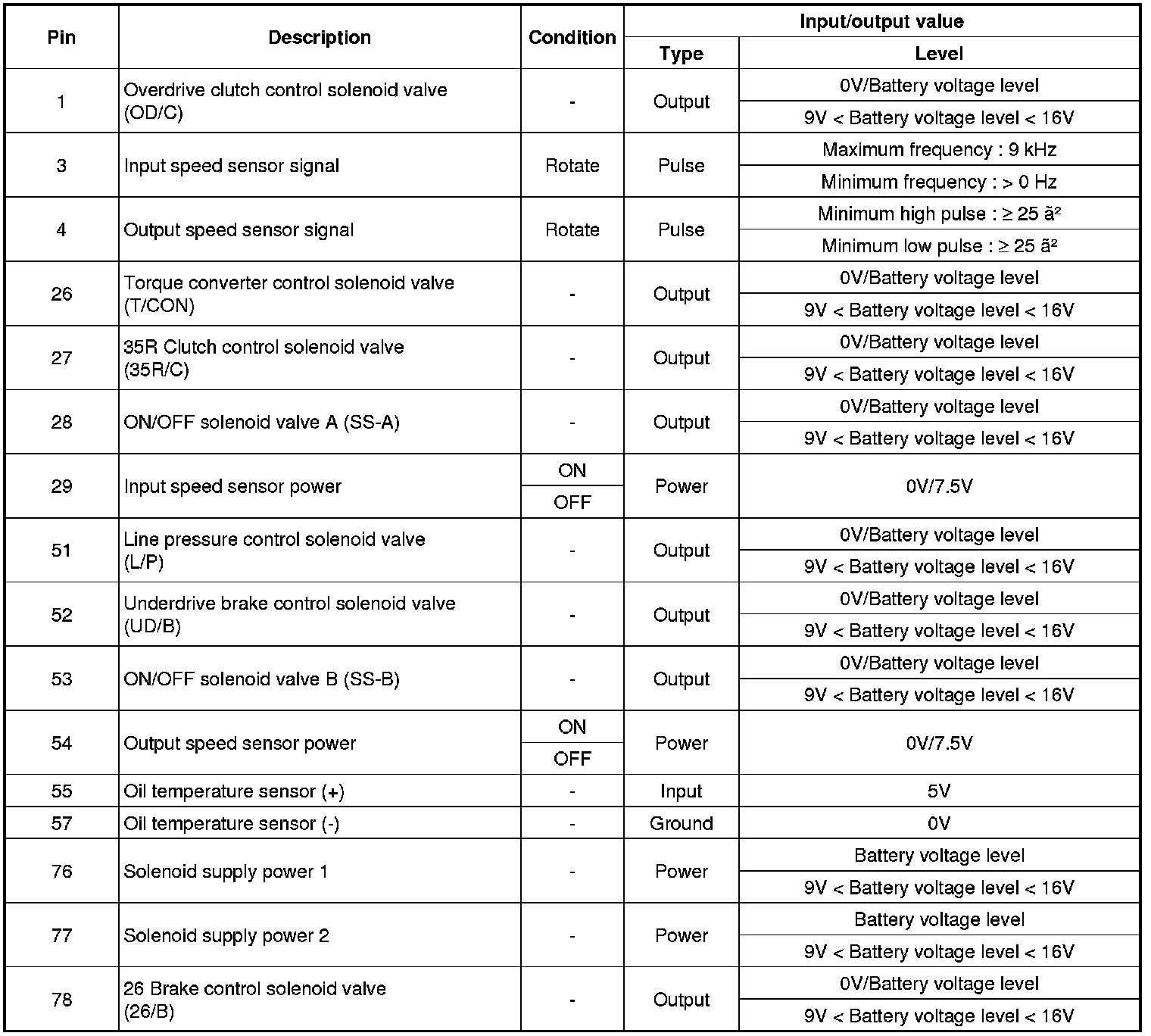

TCM Terminal input/ output signal

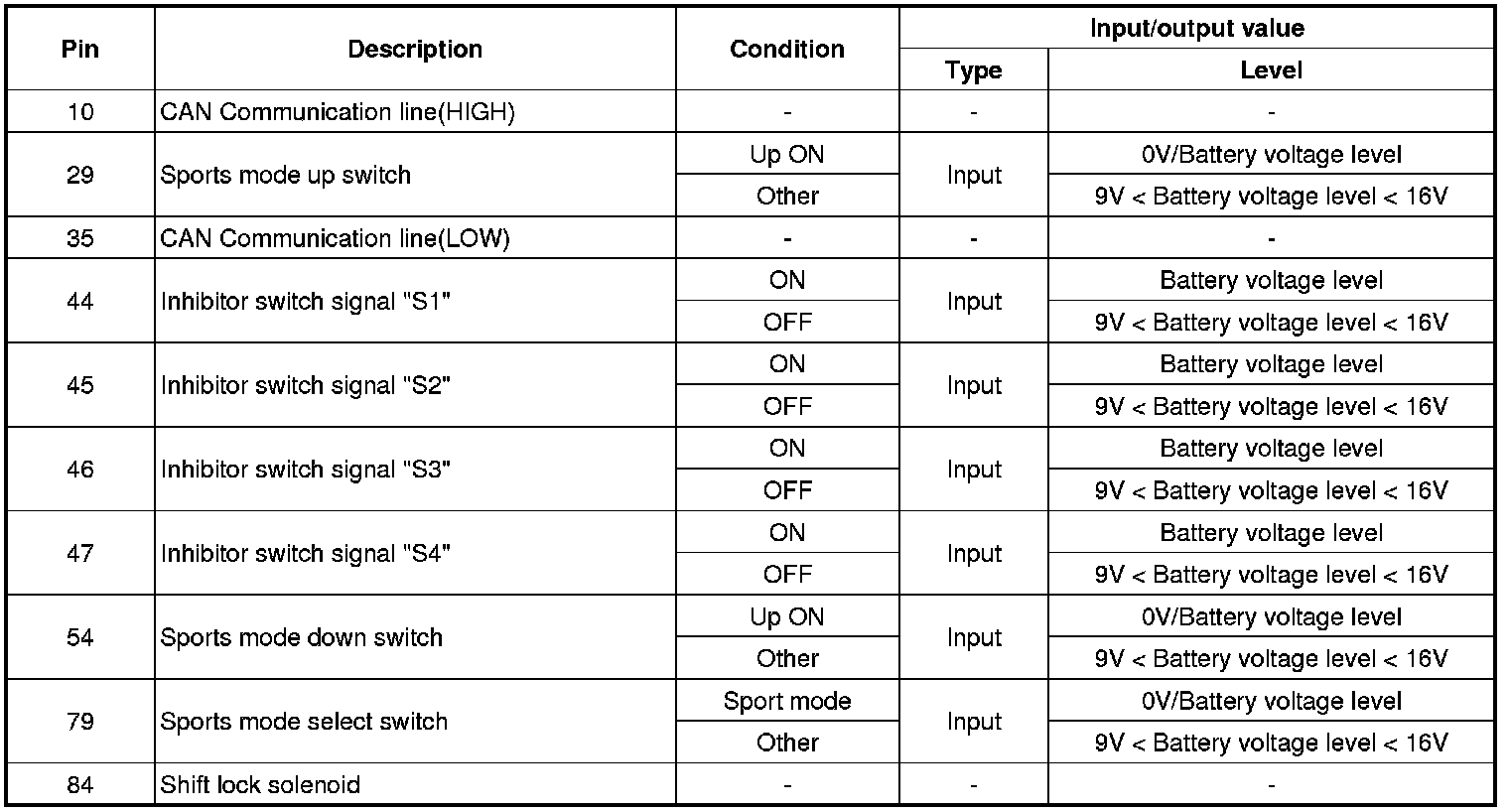

Connector[ELG-A]





Connector [CLG-B]

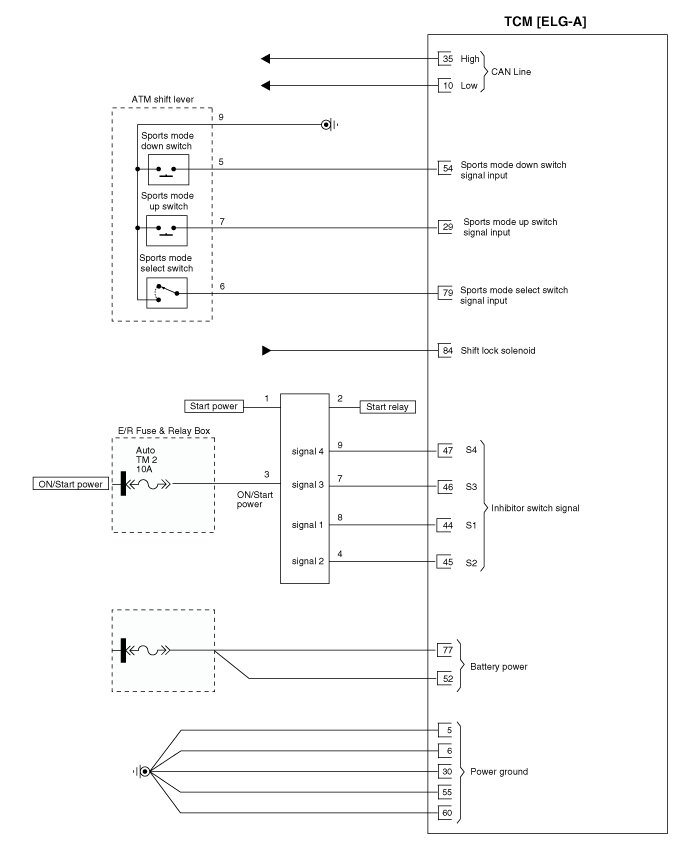

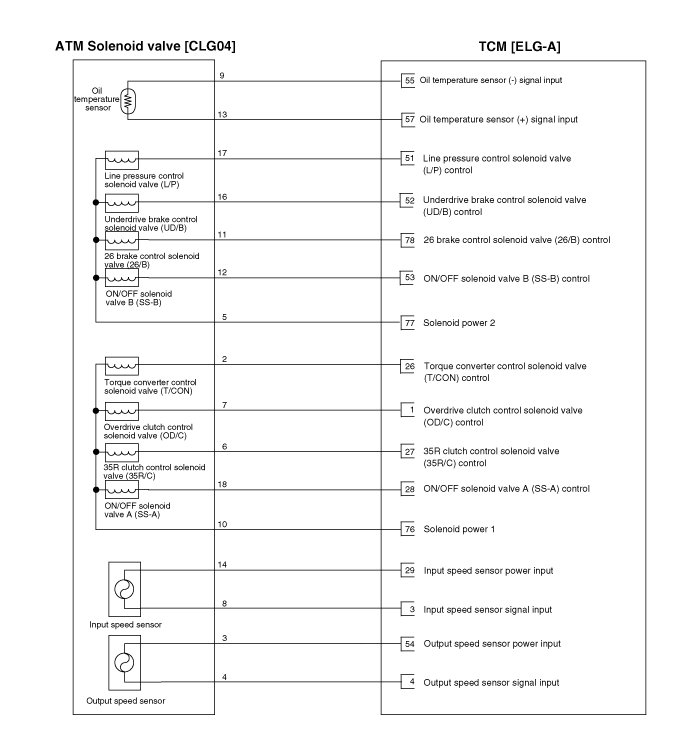

Circuit Diagram
