Charging System
CHARGING SYSTEM SPECIFICATIONS
| Items | Specification | ||
|---|---|---|---|
| Alternator | Rate voltage | 13.5 V, 150A | |
| Speed in use | 1, 500 ~ 18, 000 rpm | ||
| Voltage regulator | IC regulator built-in type | ||
| Regulator setting voltage | External mode | ECU control | |
| Internal mode | 14.0~15.0V | ||
| Temperature compensation | External mode | ECU control | |
| Internal mode | -4 ± 4 mV/°C | ||

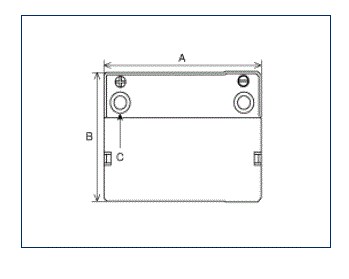

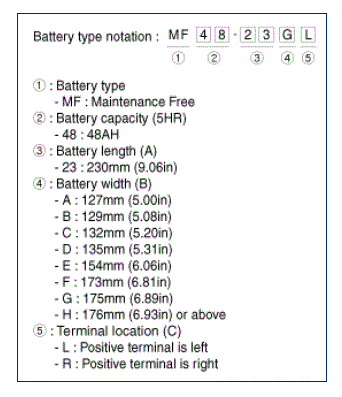

| Battery | Type | 64 - 27 GL | |
| Cold cranking amperage [at -18°C (- 0.4°F)] | 660 A | ||
| Reserve capacity | 145 min | ||
| Specific gravity [at 25° C (77°F)] | 1.280 ± 0.01 | ||
CAUTION:
- COLD CRANKING AMPERAGE is the amperage a battery can deliver for 30 seconds and maintain a terminal voltage of 7.2V or greater at a specified temperature.
- RESERVE CAPACITY RATING is amount of time a battery can deliver 25A and maintain a minimum terminal voltage of 10.5V at 26.7°C (80.1°F).
