Front Engine Hanger

  1. Remove the front engine hanger (A)

    Tightening torque:

    44.1 ~ 53.6N.m (4.5 ~ 5.5kgf.m, 32.5 ~ 39.8lb-ft)

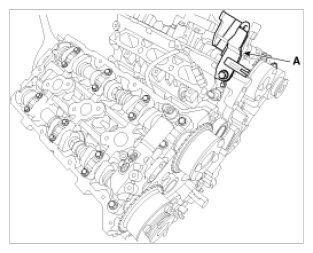

    Fig 1: Identifying Front Engine Hanger
    G08809122Courtesy of HYUNDAI MOTOR AMERICA
  2. Install in the reverse order of removal.
