Circuit Diagram: (A/T)

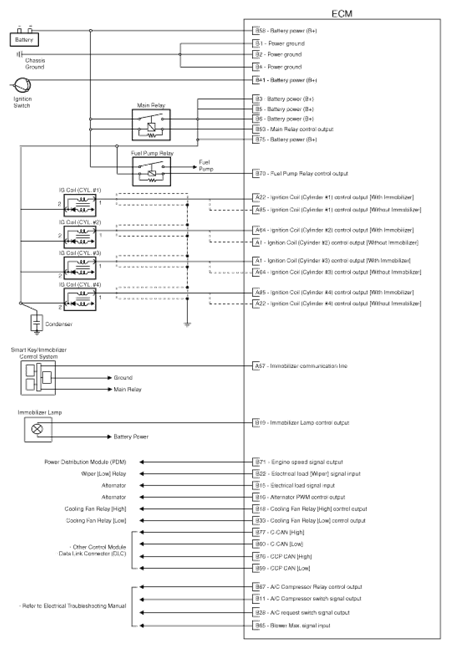

Fig 1: A/T - Circuit Diagram (1 Of 4)
G10234842Courtesy of HYUNDAI MOTOR AMERICA

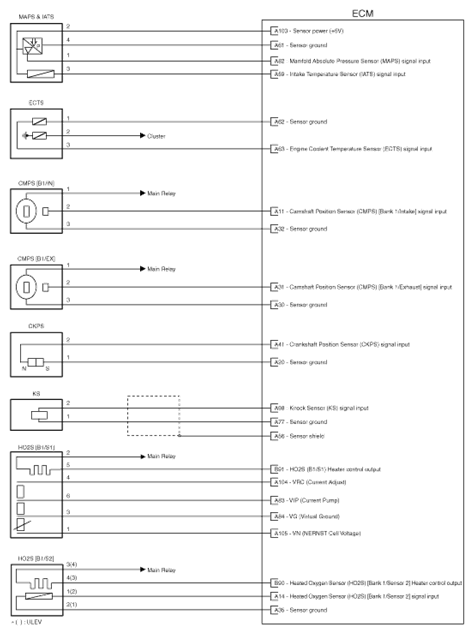

Fig 2: A/T - Circuit Diagram (2 Of 4)
G10234843Courtesy of HYUNDAI MOTOR AMERICA

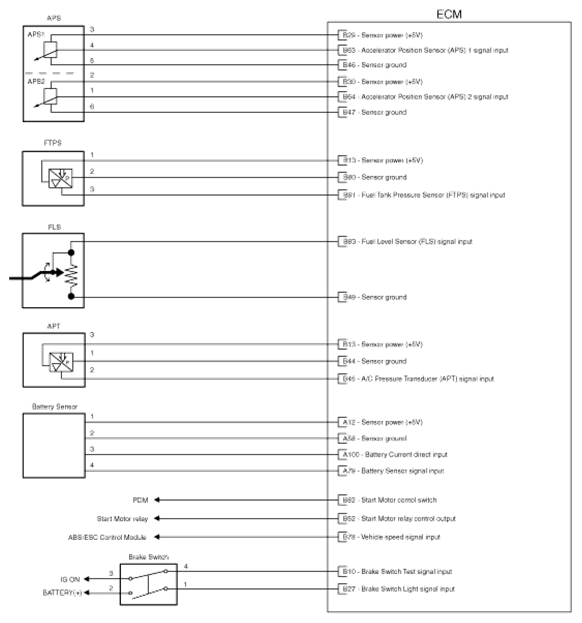

Fig 3: A/T - Circuit Diagram (3 Of 4)
G10234844Courtesy of HYUNDAI MOTOR AMERICA

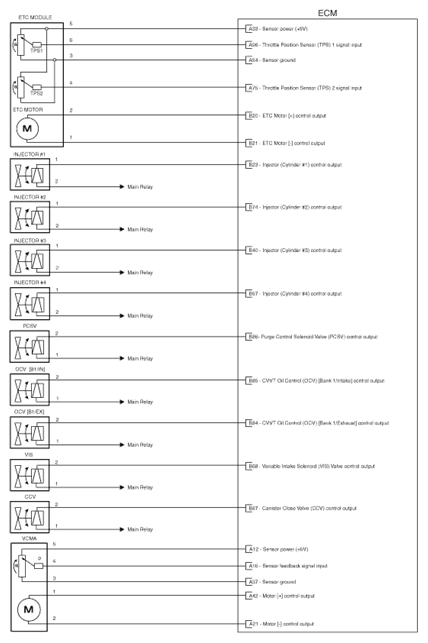

Fig 4: A/T - Circuit Diagram (4 Of 4)
G10234845Courtesy of HYUNDAI MOTOR AMERICA
