Circuit Diagram: (M/T)

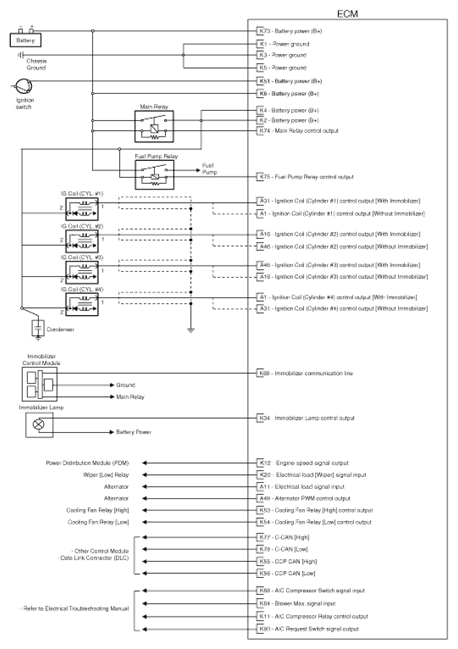

Fig 1: M/T - Circuit Diagram (1 Of 4)
G10234838Courtesy of HYUNDAI MOTOR AMERICA

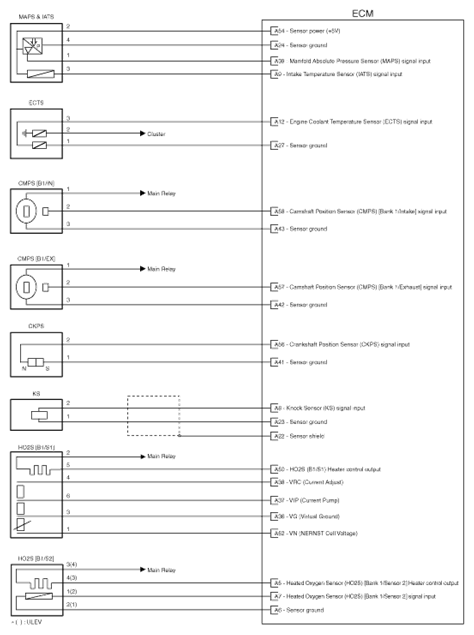

Fig 2: M/T - Circuit Diagram (2 Of 4)
G10234839Courtesy of HYUNDAI MOTOR AMERICA

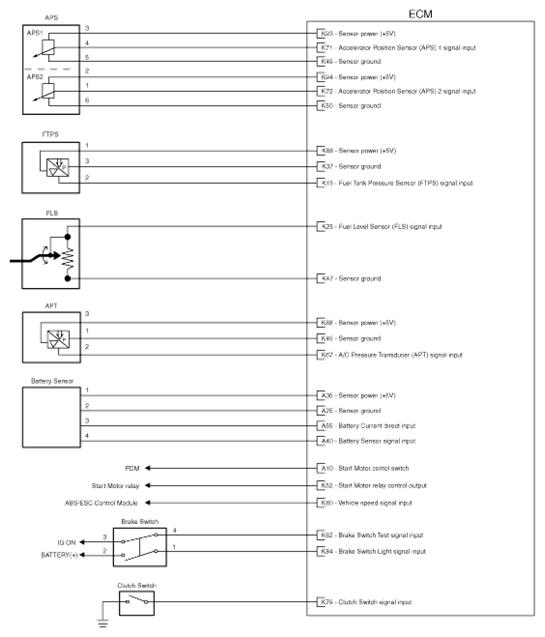

Fig 3: M/T - Circuit Diagram (3 Of 4)
G10234840Courtesy of HYUNDAI MOTOR AMERICA

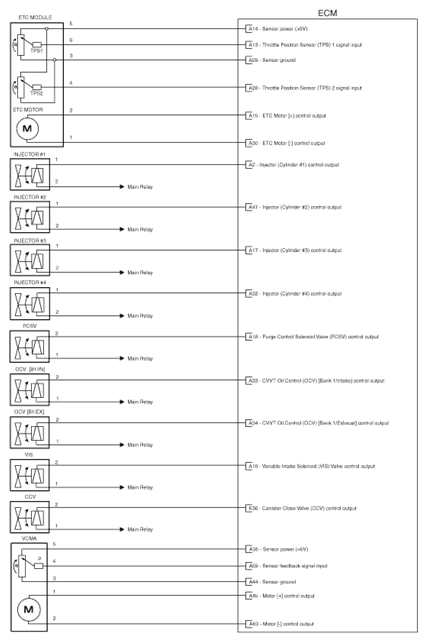

Fig 4: M/T - Circuit Diagram (4 Of 4)
G10234841Courtesy of HYUNDAI MOTOR AMERICA
