Circuit Diagram: (M/T)

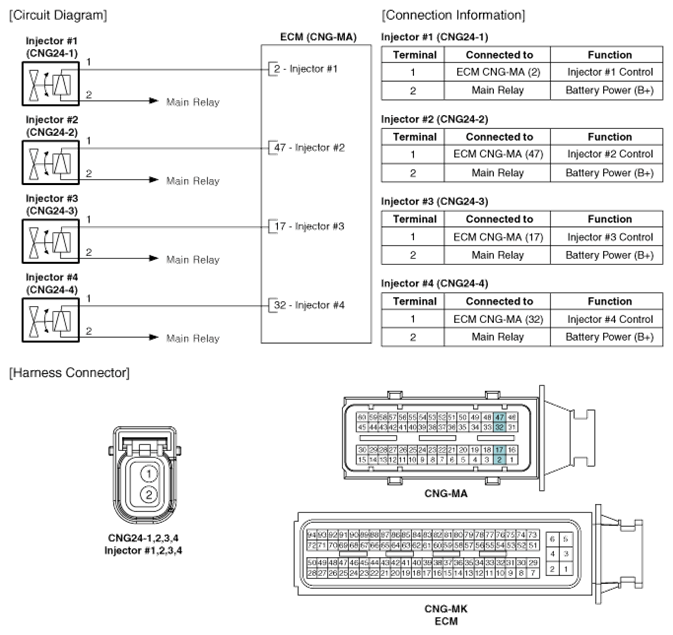

Fig 1: Fuel Injectors Circuit Diagram (M/T)

G10234909

Courtesy of HYUNDAI MOTOR AMERICA
