Repair procedures: Installation

  1. Installation is the reverse of removal.
    NOTE:
    • Use a SST (09480-A3800) or 0.1969in.(5mm) bolt fix the inhibitor manual control lever in the jig hole (A) when you assemble the inhibitor (B).

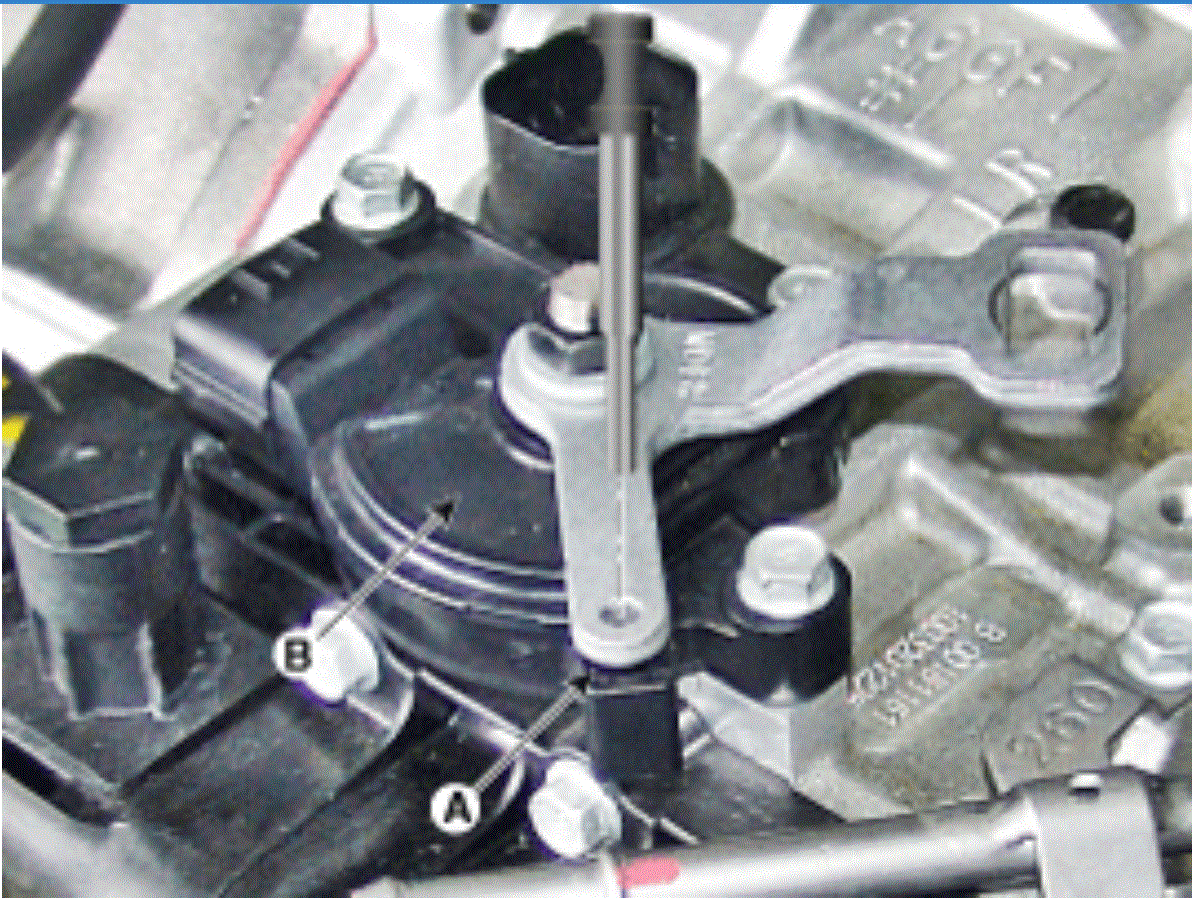

      Fig 1: Jig Hole And Inhibitor
      G00559831Courtesy of HYUNDAI MOTOR AMERICA
    • Adjust the shift cable after you install the inhibitor switch.

      (Refer to "SHIFT LEVER ")
