Circuit Diagram: 2014

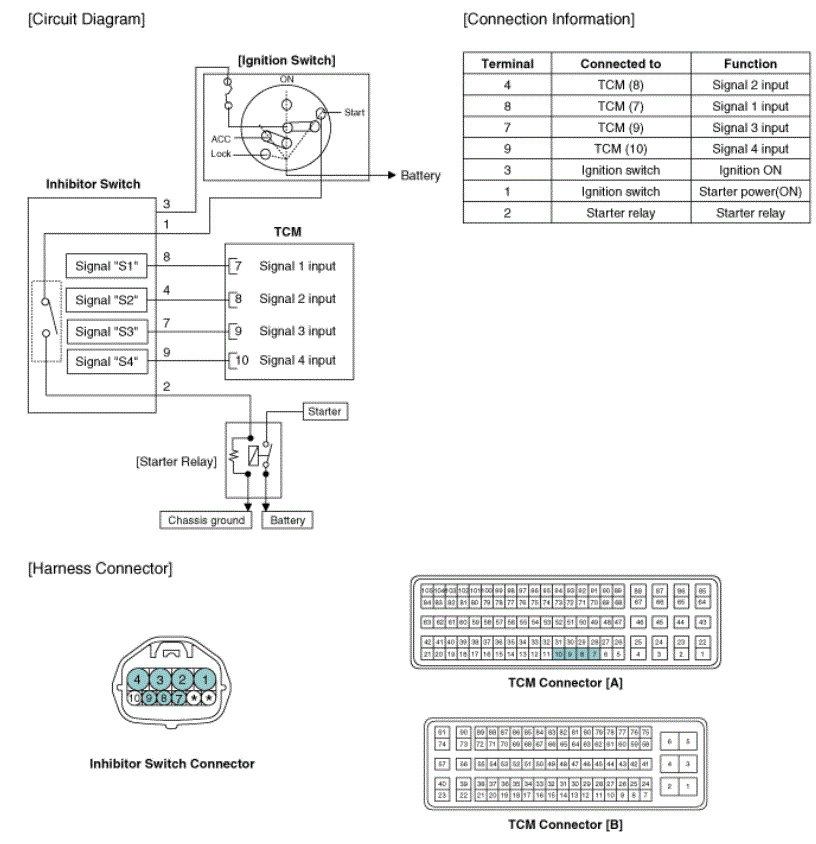

Fig 1: Inhibitor Switch Circuit Diagram
G00559830Courtesy of HYUNDAI MOTOR AMERICA
