Repair procedures: Adjustment

Place the shift lever in the interior, and the transmission manual control lever, to the N position.
Connect the shift cable (B) to the shift lever (A).

Fig 1: Shift Lever And Shift Cable
Courtesy of HYUNDAI MOTOR AMERICA
Lightly push the shift cable towards "F" to tighten the cable.
Tighten the nut (A) to the specified torque.
Tightening torque:

9.8 ~ 14.7 N.m (1.0 ~ 1.4 kgf.m, 7.2 ~ 10.8 lb-ft)

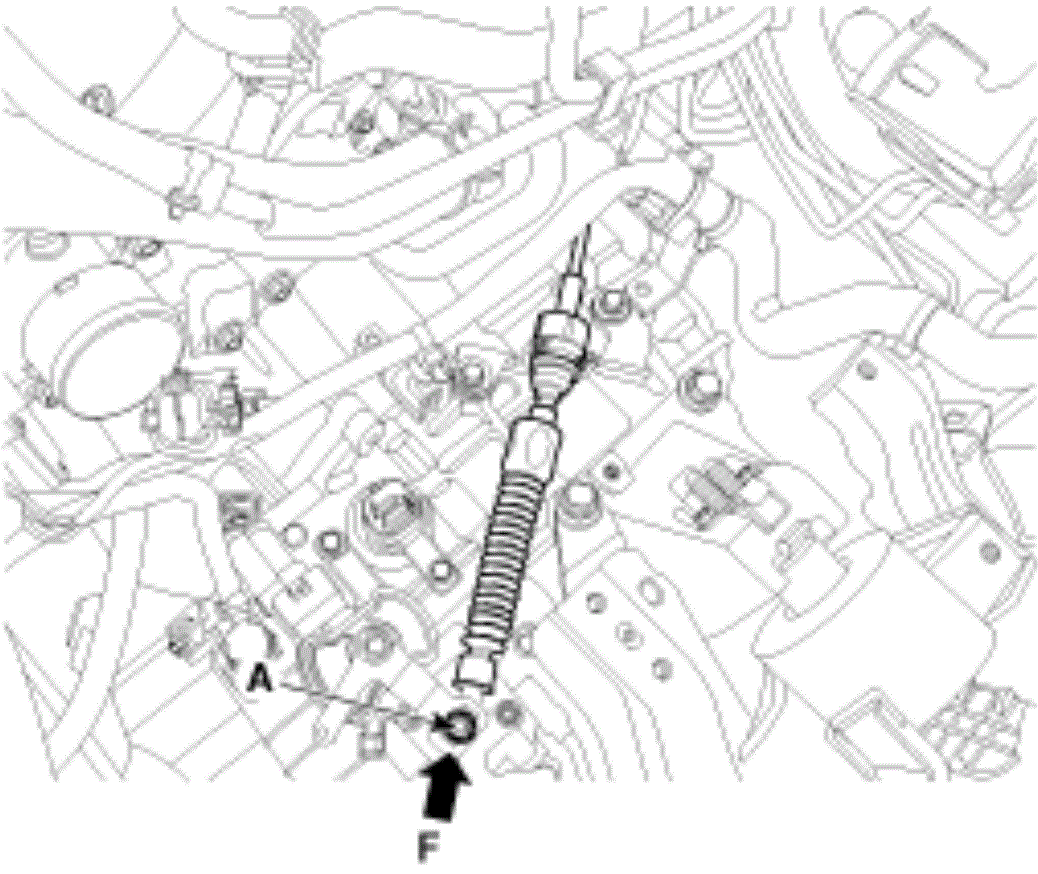

Fig 2: Angle Of Adjustment And Nut
Courtesy of HYUNDAI MOTOR AMERICA
