Repair procedures: Removal

Remove the floor console assembly.
(Refer to "CONSOLE ")

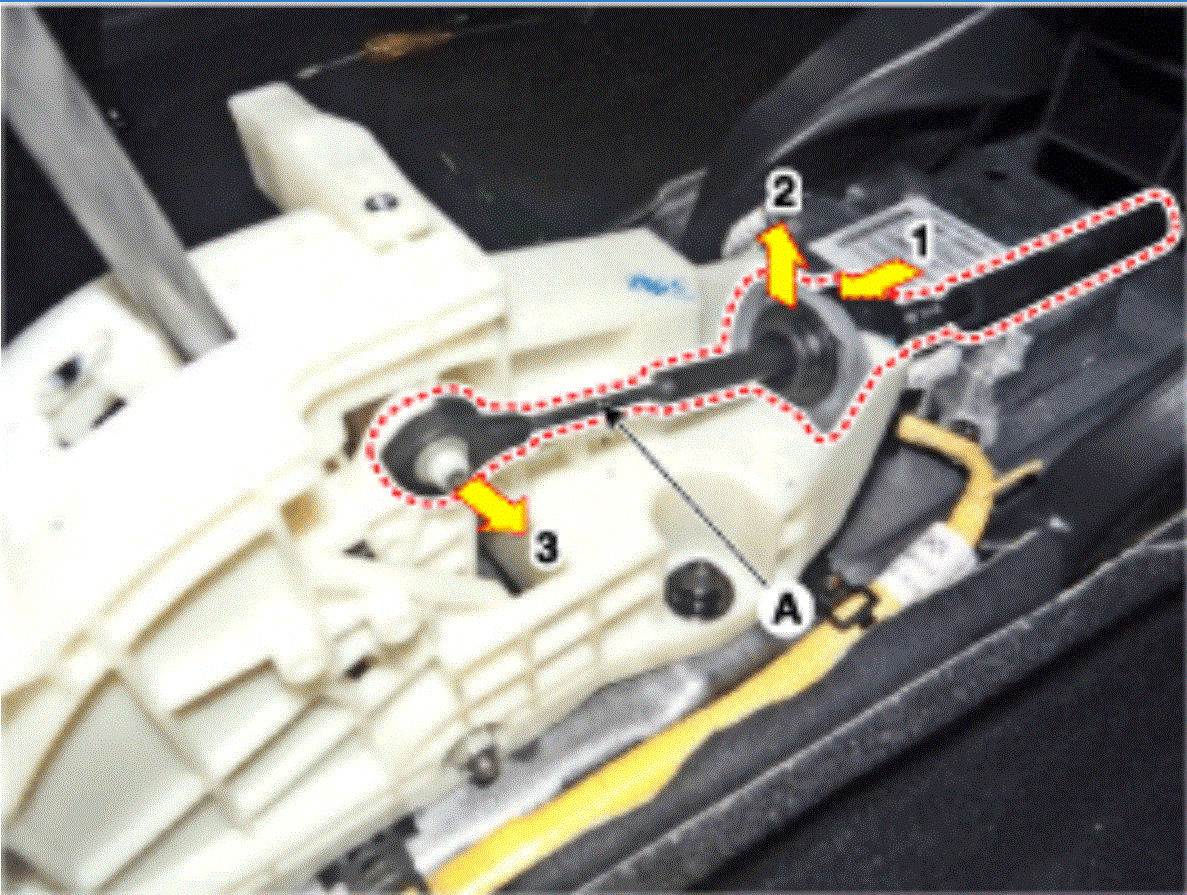

Remove the shift cable (A).

Fig 1: Shift Cable
Courtesy of HYUNDAI MOTOR AMERICA

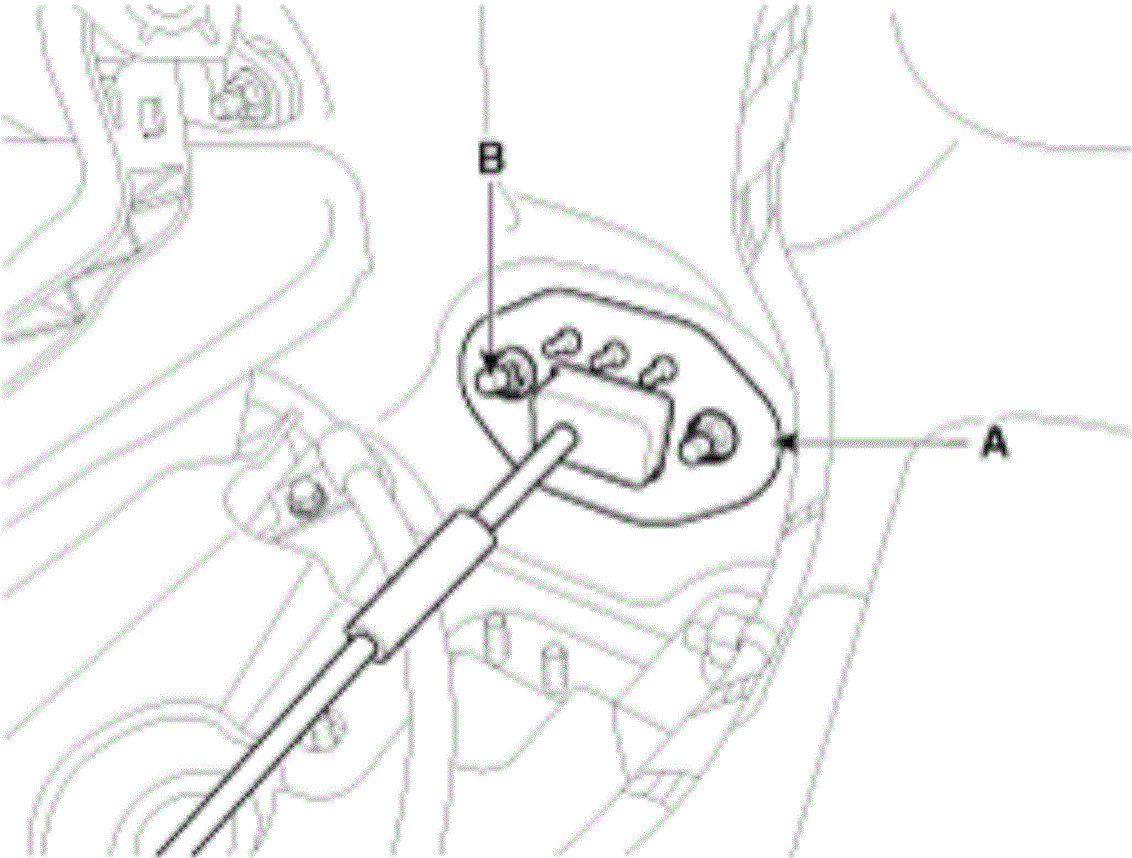

Remove the retainer (A) and nut (B).
Tightening torque:

11.8 ~ 14.7 N.m (1.2 ~1.5 kgf.m, 8.7 ~ 10.8 lb-ft)

Fig 2: Retainer And Nut
Courtesy of HYUNDAI MOTOR AMERICA

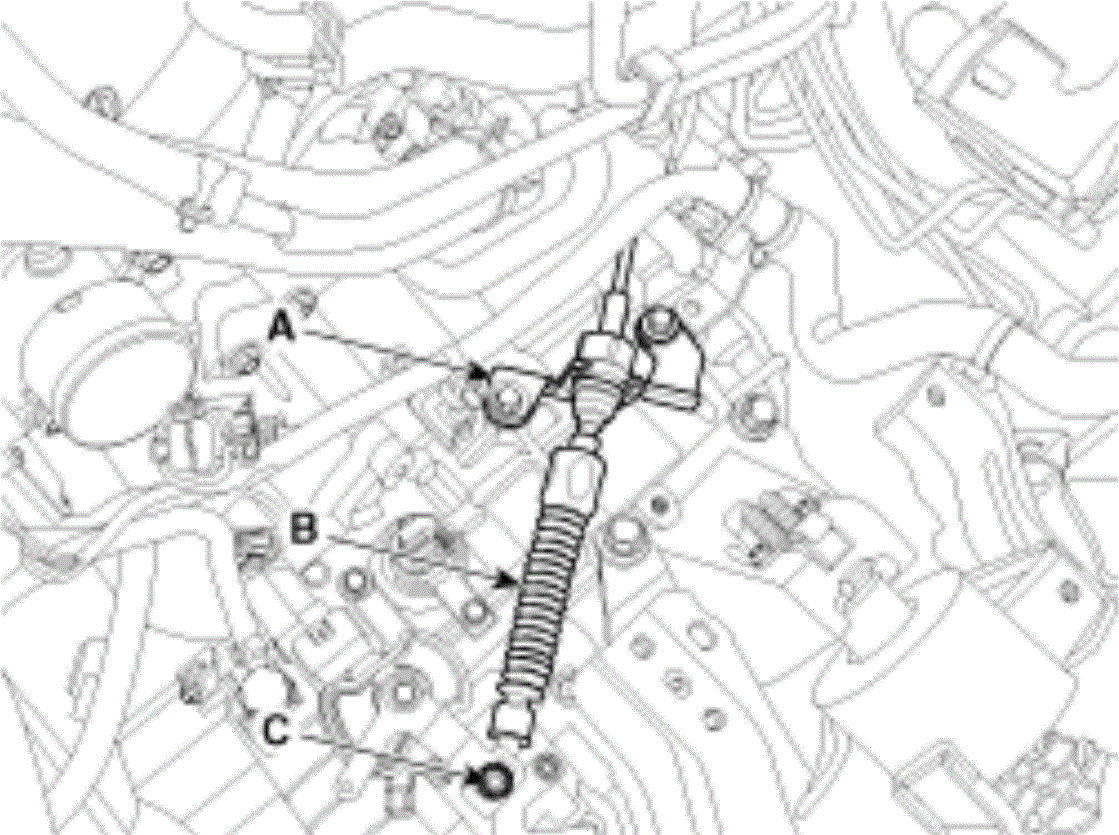

Remove the nut (C) from the manual control lever.
Tightening torque:

9.8 ~ 14.7 N.m (1.0 ~ 1.4 kgf.m, 7.2 ~ 10.8 lb-ft)

Fig 3: Bracket, Cable And Nut
Courtesy of HYUNDAI MOTOR AMERICA
Remove the cable (B) from the bracket (A) at transaxle assembly side.
Remove the shift cable by pulling it toward the interior.
