Circuit Diagram: 2014

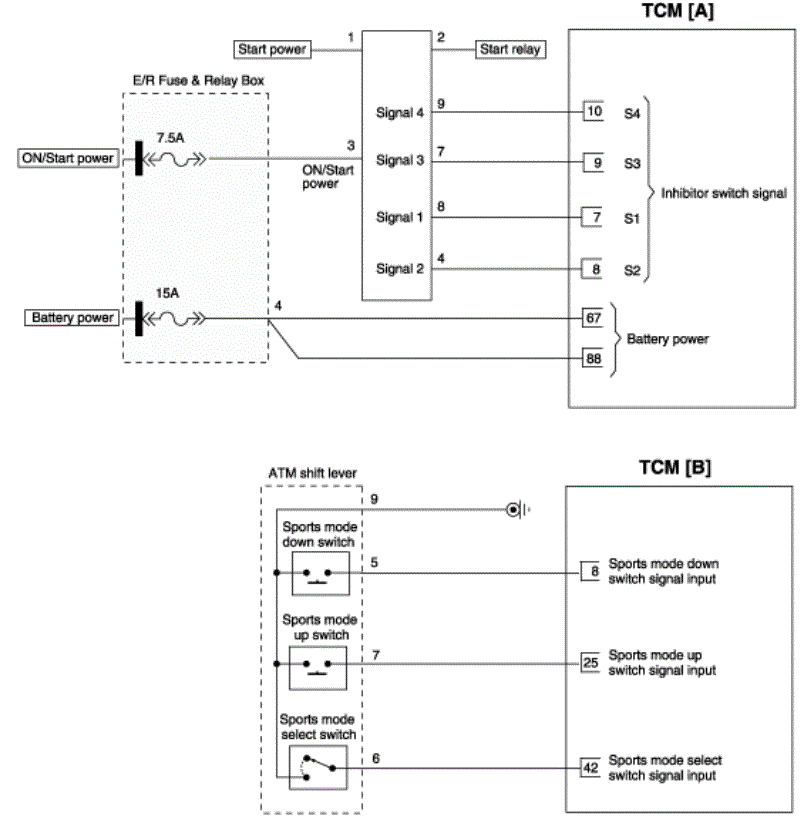

Fig 1: TCM Circuit Diagram (1 Of 2)
G00559814Courtesy of HYUNDAI MOTOR AMERICA

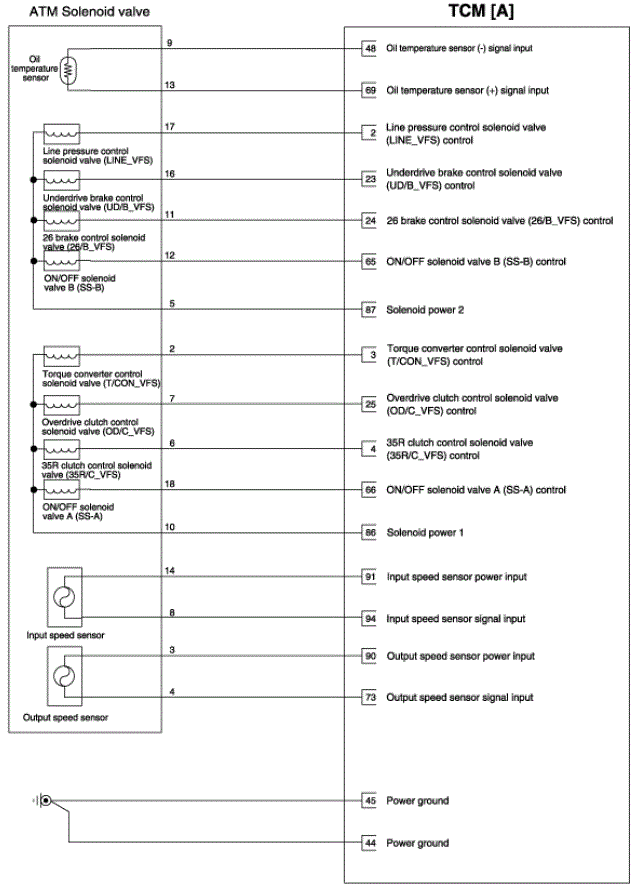

Fig 2: TCM Circuit Diagram (2 Of 2)
G00559815Courtesy of HYUNDAI MOTOR AMERICA
