Removal 2014

Remove the battery and the battery tray.
(Refer to battery and battery tray in ENGINE AND TRANSAXLE ASSEMBLY )
Remove the under cover (A).
Tightening torque:

6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)

Fig 1: Under Cover
Courtesy of HYUNDAI MOTOR AMERICA
Remove the air cleaner assembly and air duct.
(Refer to air cleaner assembly and air duct in ENGINE AND TRANSAXLE ASSEMBLY )
Remove the valve body.
(Refer to VALVE BODY )

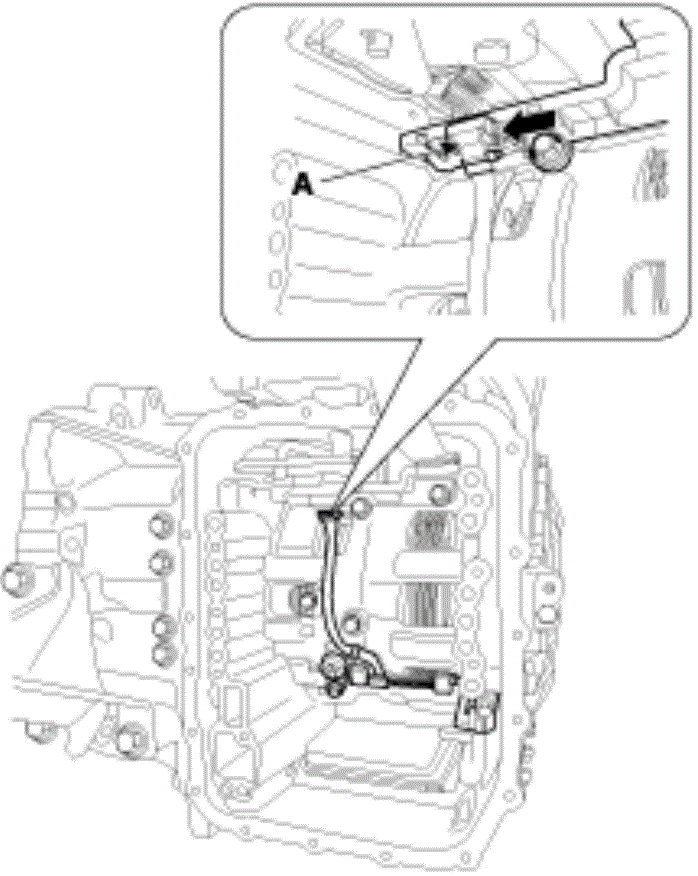

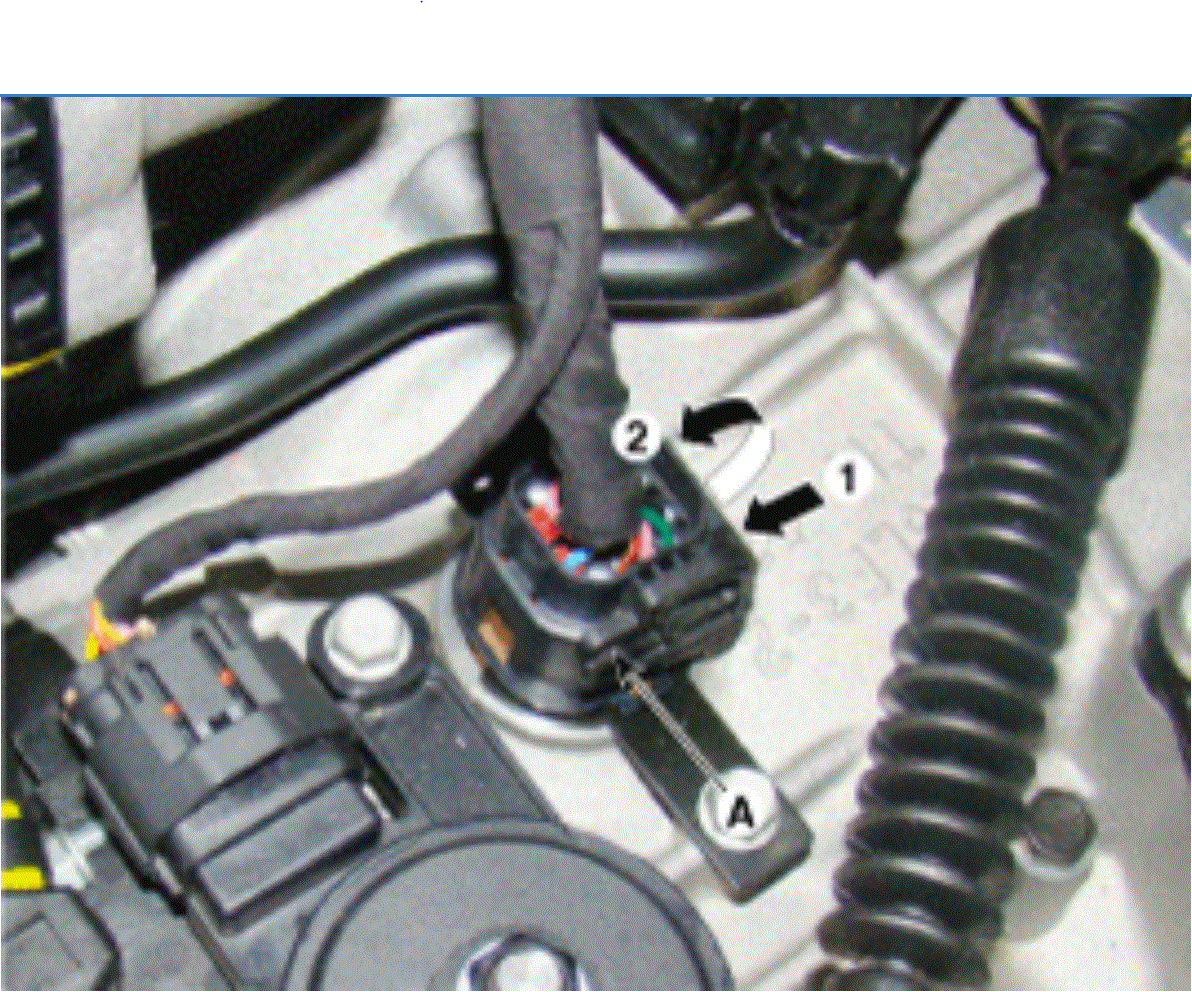

Disconnect the solenoid valve connector (A).

Fig 2: Solenoid Valve Connector
Courtesy of HYUNDAI MOTOR AMERICA

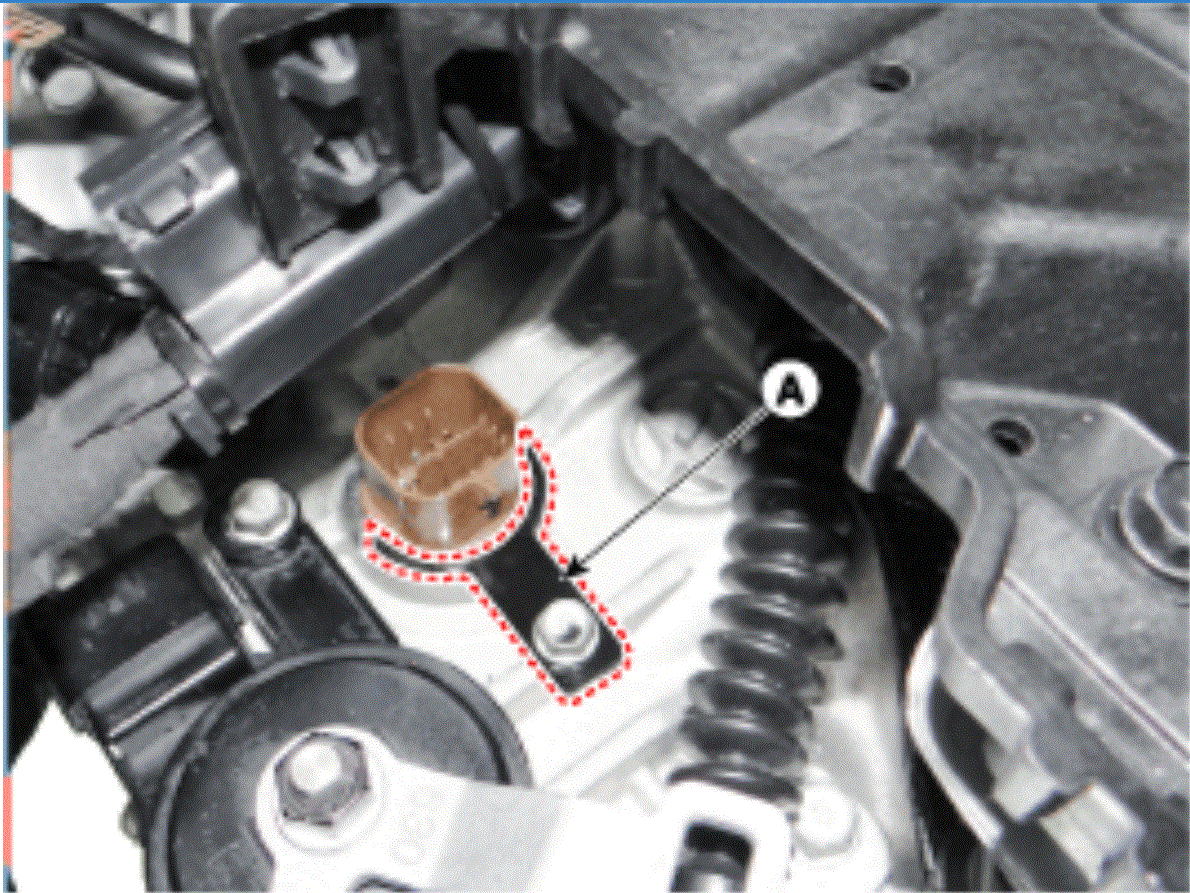

Remove the solenoid valve main connector mounting clip (A) after removing the bolt.

Fig 3: Solenoid Valve Main Connector Mounting Clip
Courtesy of HYUNDAI MOTOR AMERICA

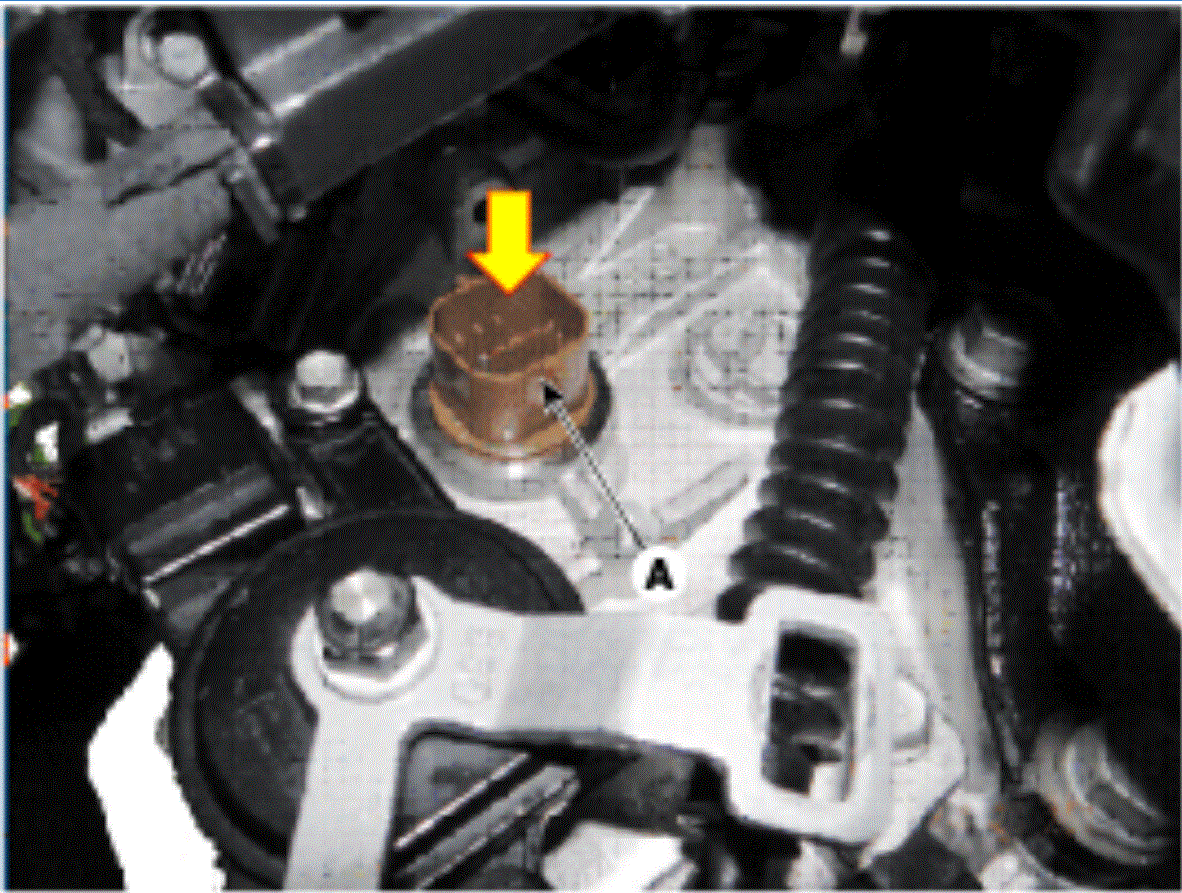

Remove the solenoid valve main connector (A).

Fig 4: solenoid valve main connector
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the input & output speed sensor connector (A) after press the lock from the solenoid valve main wiring.

Fig 5: Input & Output Speed Sensor Connector
Courtesy of HYUNDAI MOTOR AMERICA

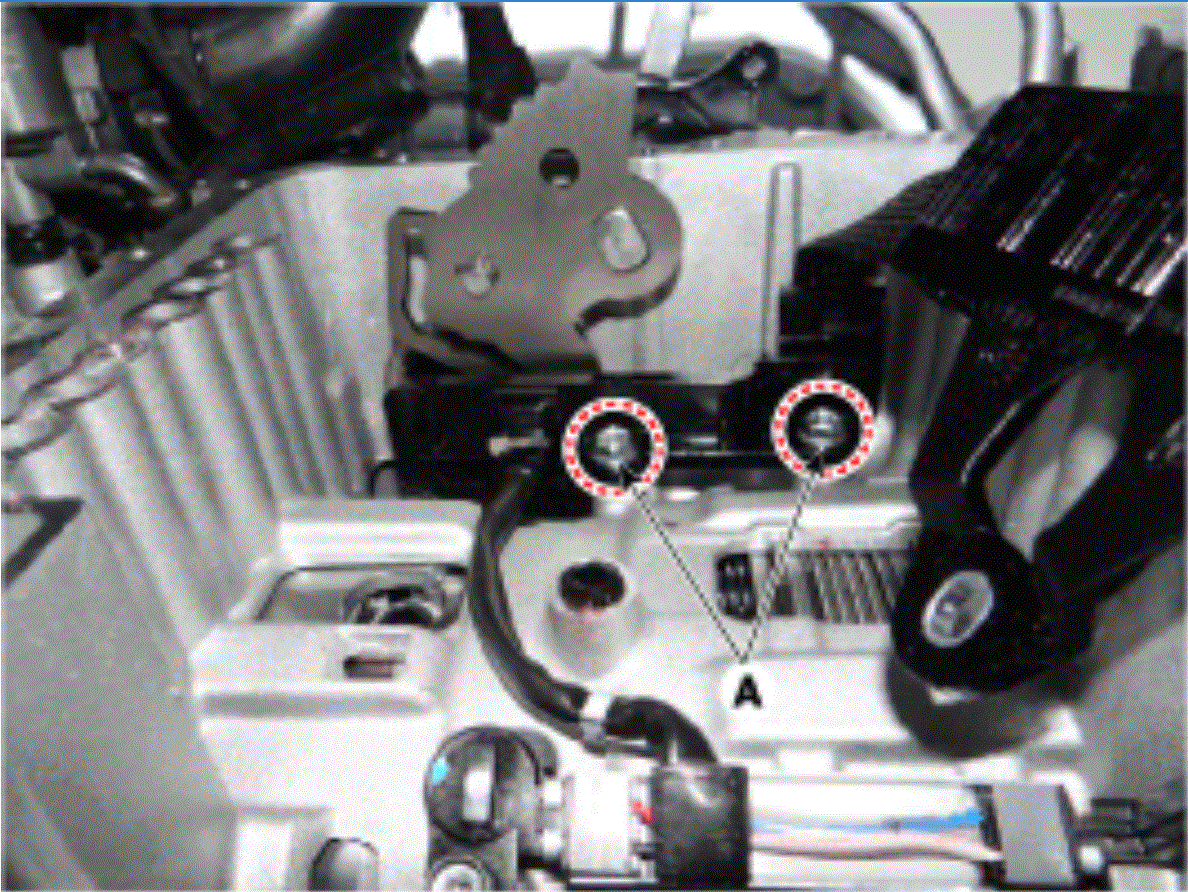

Remove the solenoid valve main wiring & oil temperature sensor after loosening the main connector bolt (A).

Fig 6: Solenoid Valve Main Wiring, Oil Temperature Sensor And Main Connector Bolt
Courtesy of HYUNDAI MOTOR AMERICA
