Repair Procedures: Installation

Installation is the reverse of removal.
CAUTION:
1. Before reassembling the automatic transaxle to the engine assembly, make sure that there is no gap (A) between automatic transaxle and engine assembly as below illustration. Do not reassemble the automatic transaxle to the engine assembly when this gap (A) exist.

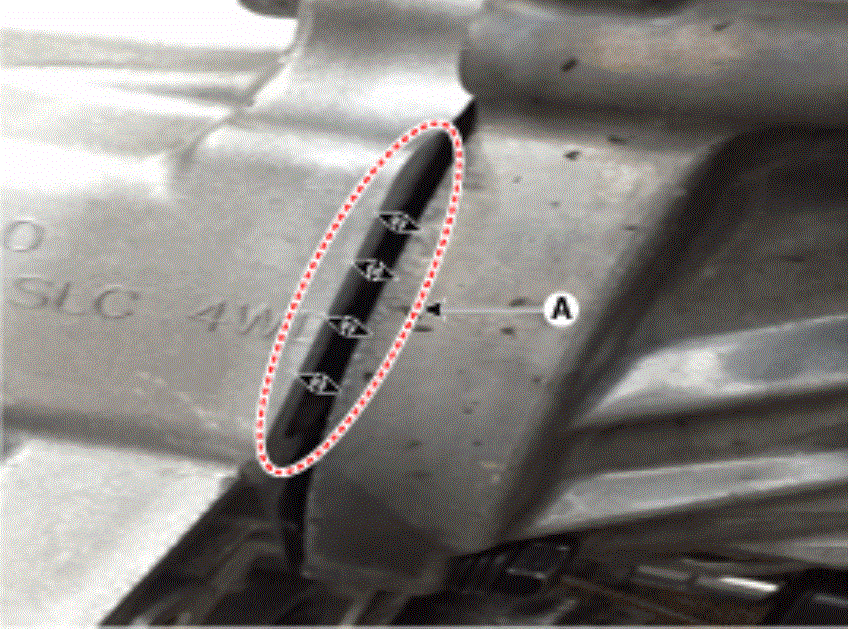

  Fig 1: Identifying Gap
  Courtesy of HYUNDAI MOTOR AMERICA
2. While there is a gap, It would be meaning that the key of oil pump gear is not assembled properly to the torque converter hub. In this case, remove the automatic transaxle assembly and then reinstall the torque converter to automatic transaxle assembly according to the key shape of oil pump gear.

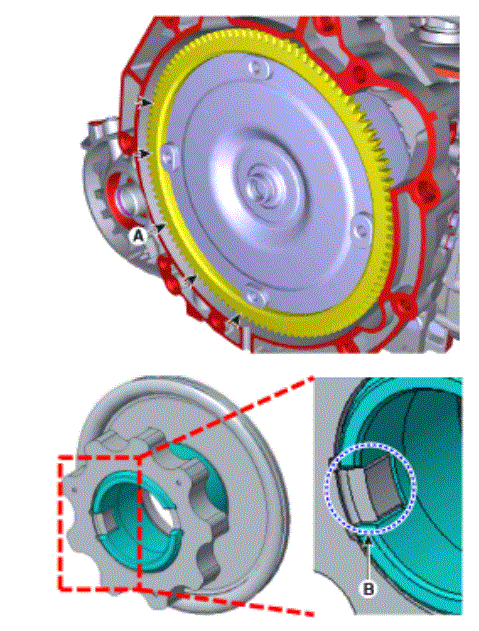

  [Correct Assembly (A) - Oil Pump Key Part (B) Engaged Properly]

  Fig 2: Correct Assembly
  Courtesy of HYUNDAI MOTOR AMERICA

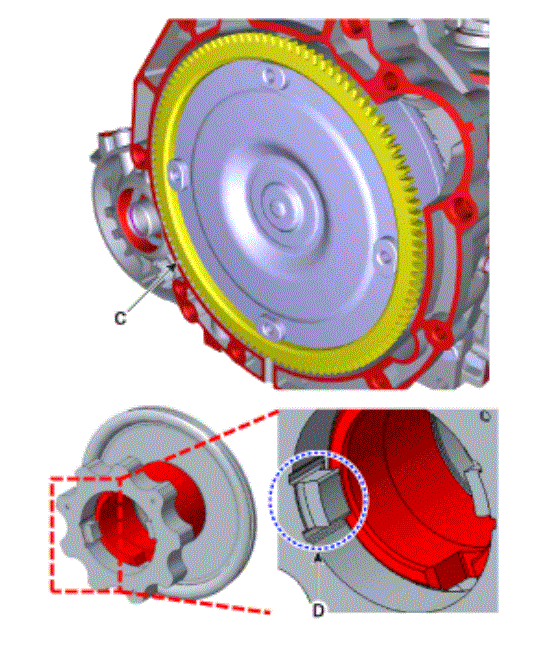

  [Incorrect Assembly (C) - Torque Converter Protruded due to Interference with the Oil Pump Key Part (D)]

  Fig 3: Incorrect Assembly
  Courtesy of HYUNDAI MOTOR AMERICA
3. If the mounting bolt is tightened forcibly in spite of a gap, key of oil pump gear will be damaged or broken. In this case, replace the automatic transaxle assembly.
NOTE:
Follow the each separate procedure as below according to reinstallation or replacing with a new automatic transaxle.
In case of the reinstallation.
1. Replace the oil seal with a new one when ATF leak occurred because of differential oil seal damage.
  NOTE:
  When installing the new oil seal, use the special service tool (SST No.:09453-3L340, 09231-H1100).
2. Check the ATF level after refilling the automatic transaxle with fluid. (Refer to "FLUID ")
3. Clear the diagnostic trouble codes (DTC) using the GDS.
  NOTE:
  Even though disconnecting the battery negative terminal, the DTCs will not be cleared. So, be sure to clear the DTCs using the GDS.
In case of the replacing with a new automatic transaxle.
NOTE:
New automatic transaxle is already filled with specified quantity ATF. For that reason, it does not necessary to refill and check the ATF but the remaining ATF inside of ATF cooler have to be removed.
1. Set the air blow gun in front of the ATF cooler hose (A).
2. Remove the remaining ATF by blowing air into ATF cooler hose (A).
3. Install the ATF cooler hose (A) and (B).

  Fig 4: Identifying ATF Cooler Hoses
  Courtesy of HYUNDAI MOTOR AMERICA
4. Clear the diagnostic trouble codes (DTC) using the GDS.
  NOTE:
  Even though disconnecting the battery negative terminal, the DTCs will not be cleared. So, be sure to clear the DTCs using the GDS.
5. Reset the automatic transaxle adaptive values using the GDS.

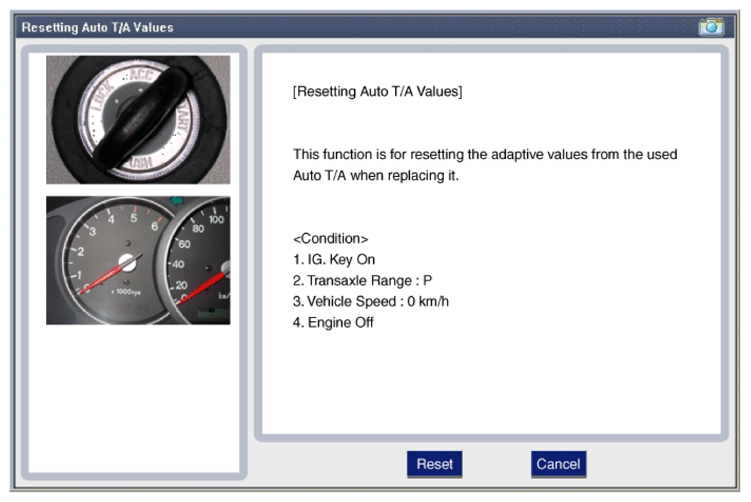

  Fig 5: Display - Automatic Transaxle Values Reset Screen
  Courtesy of HYUNDAI MOTOR AMERICA
6. Perform the TCM adaptive values learning procedure. (Refer to "REPAIR PROCEDURES ")
In case of the replacing with a remanufactured automatic transaxle.
NOTE:
Remanufactured automatic transaxle is not filled with specified quantity ATF. For that reason, it is necessary to refill and check the ATF.
1. Check the ATF level after refilling the automatic transaxle with fluid. (Refer to "FLUID ")
2. Clear the diagnostic trouble codes (DTC) using the GDS.
  NOTE:
  Even though disconnecting the battery negative terminal, the DTCs will not be cleared. So, be sure to clear the DTCs using the GDS.
3. Reset the automatic transaxle adaptive values using the GDS.

  Fig 6: Display - Automatic Transaxle Values Reset Screen
  Courtesy of HYUNDAI MOTOR AMERICA
4. Perform the TCM adaptive values learning procedure. (Refer to "REPAIR PROCEDURES ")
