Neutralization Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IGN ON, select the "Neutralization mode".

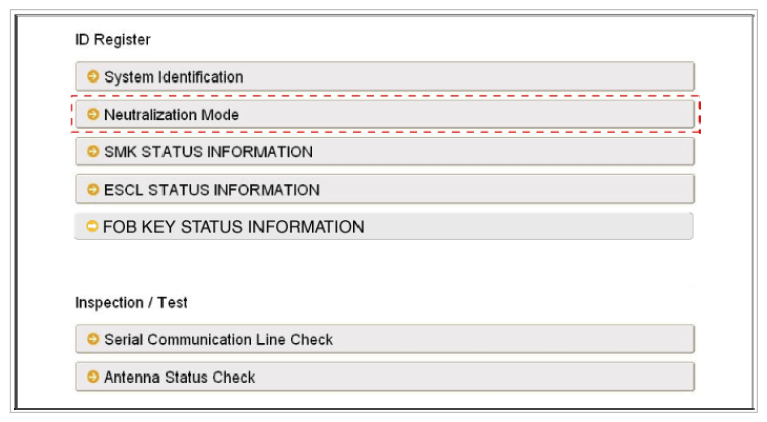

    Fig 1: Display - Neutralization Mode
    G08814157Courtesy of HYUNDAI MOTOR AMERICA

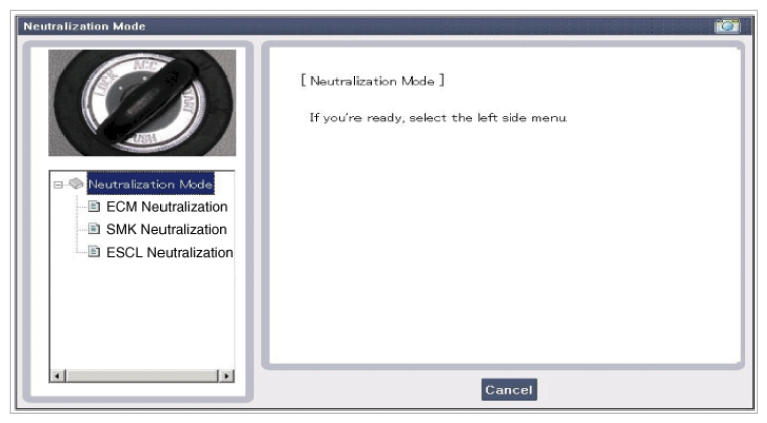

    Fig 2: Display - Neutralization Mode Menu Screen
    G08814158Courtesy of HYUNDAI MOTOR AMERICA

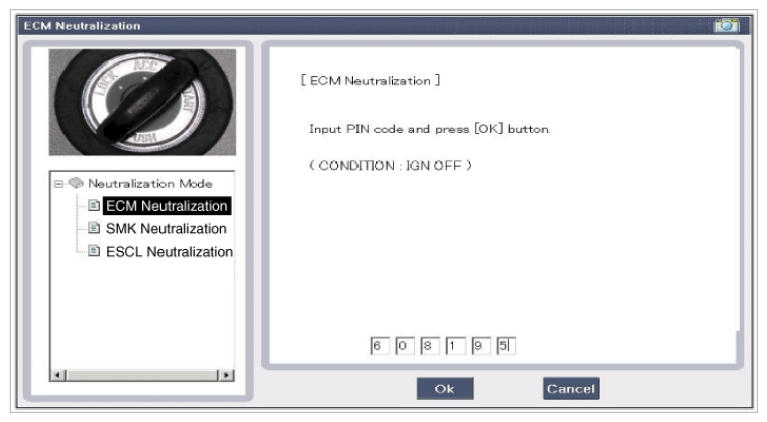

    Fig 3: Display - ECM Neutralization Input Pin Code Screen
    G08814159Courtesy of HYUNDAI MOTOR AMERICA

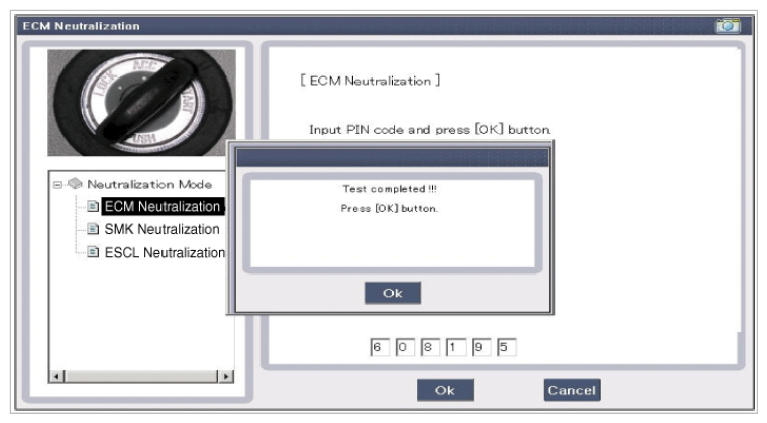

    Fig 4: Display - ECM Neutralization Test Completion Message
    G08814160Courtesy of HYUNDAI MOTOR AMERICA

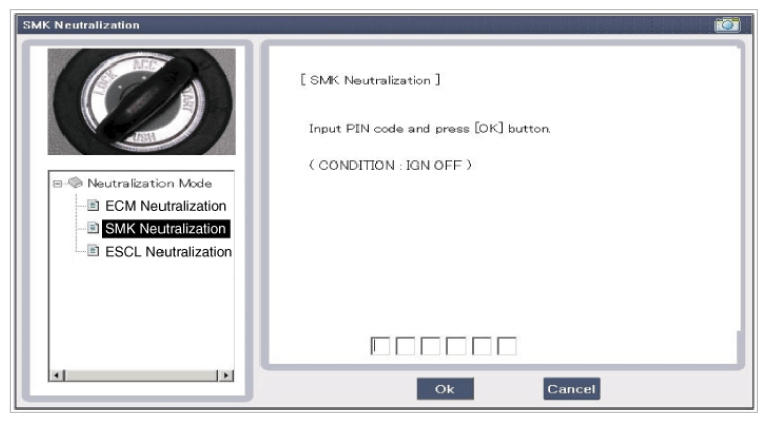

    Fig 5: Display - SMK Neutralization Empty Input Pin Code Screen
    G08814161Courtesy of HYUNDAI MOTOR AMERICA
    Fig 6: Display - SMK Neutralization Input Pin Code Screen
    G08814162Courtesy of HYUNDAI MOTOR AMERICA

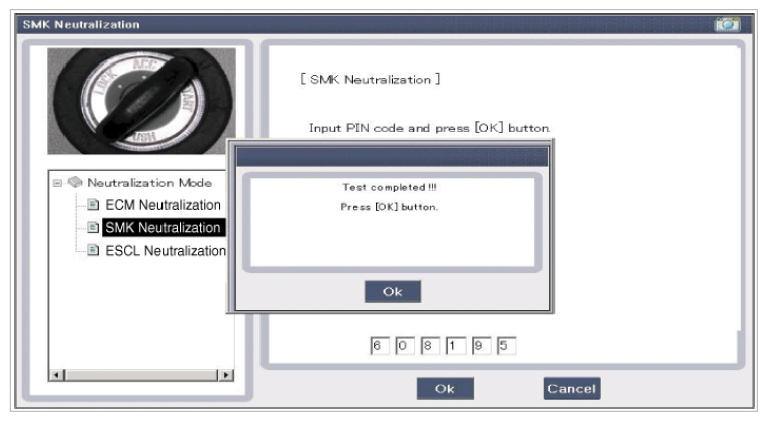

    Fig 7: Display - SMK Neutralization Test Completion Message
    G08814163Courtesy of HYUNDAI MOTOR AMERICA

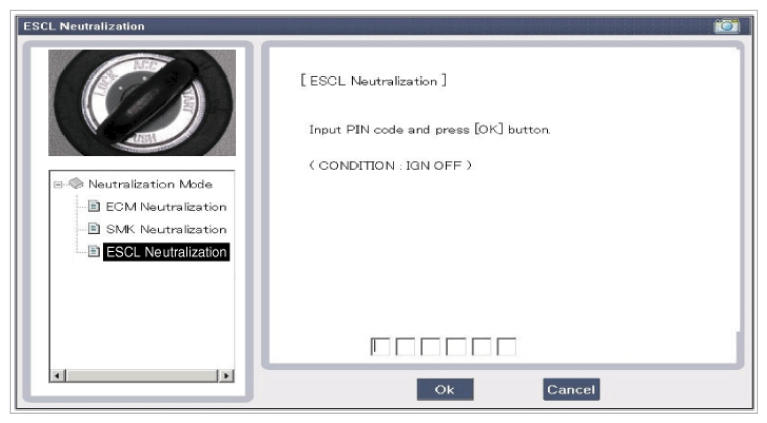

    Fig 8: Display - ESCL Neutralization Empty Input Pin Code Screen
    G08814164Courtesy of HYUNDAI MOTOR AMERICA

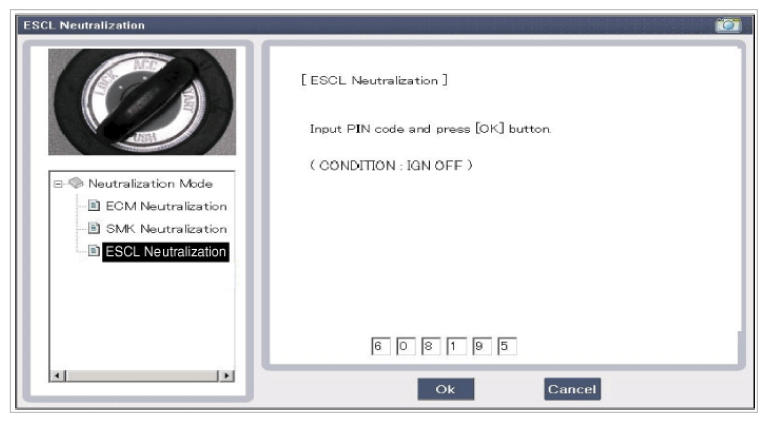

    Fig 9: Display - ESCL Neutralization Input Pin Code Screen
    G08814165Courtesy of HYUNDAI MOTOR AMERICA

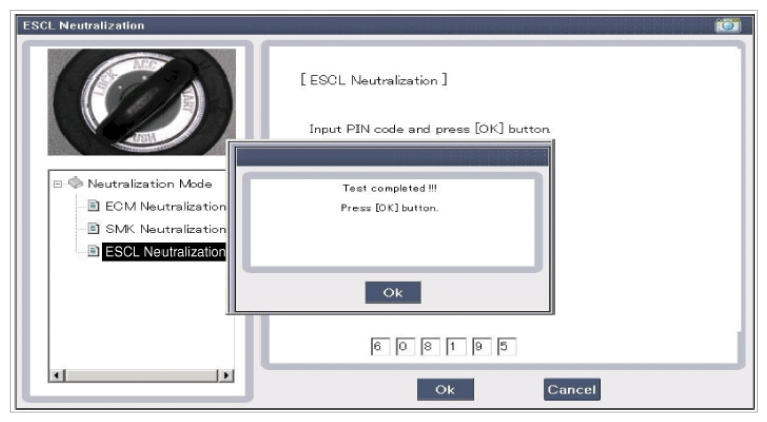

    Fig 10: Display - ESCL Neutralization Test Completion Message
    G08814166Courtesy of HYUNDAI MOTOR AMERICA
    INPUT SWITCH LIST

    No Item name Unit
    1 SSB switch 2 -
    2 ACC -
    3 IGN1 -
    4 Gear 'P' Position -
    5 Brake switch -
    6 FL Door Lock Button -
    7 FR Door Lock Button -
    8 Trunk Lid switch -
    9 Battery Voltage -
    10 Alternator Voltage -
    11 KEY out Indicator Lamp -
    12 Immobilizer Lamp -
    13 External Buzzer -
    14 ESCL Enable -
    ACTUATOR LIST

    No. Item name Condition
    1 Immo. indicator Lamp Ignition switch ON Engine off
    2 External Buzzer Ignition switch ON Engine off
    3 Interior Antenna 1 Active Ignition switch ON Engine off
    4 Interior Antenna 2 Active Ignition switch ON Engine off
    5 Trunk Antenna Active Ignition switch ON Engine off
    6 Bumper Antenna Active Ignition switch ON Engine off
    7 DRV DR Antenna Active Ignition switch ON Engine off
    8 AST DR Antenna Active Ignition switch ON Engine off
