Front Safety Window

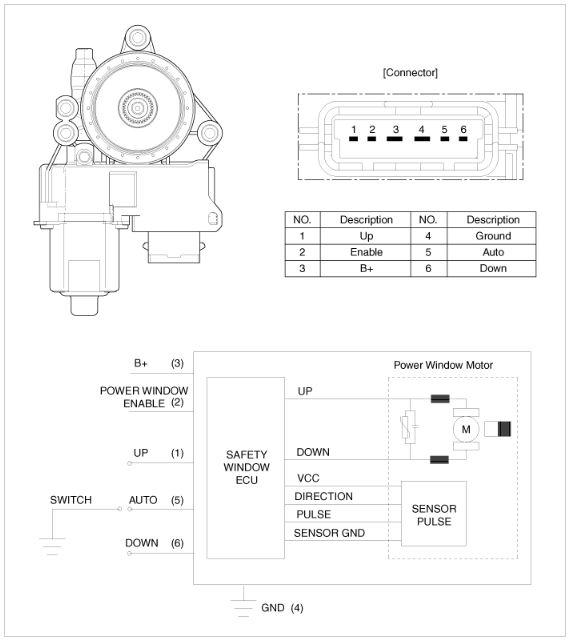

Fig 1: Front Safety Window Circuit Diagram

G08814425

Courtesy of HYUNDAI MOTOR AMERICA
