Driver Power Window Switch

  1. When checking the driver power window switch, select a vehicle type and "IPM" menu.
  2. Select "DDM (Driver Door Module)".
  3. Select option "Input/Output monitoring".
    Fig 1: Driver Power Window Switch Current Data
    G08814435Courtesy of HYUNDAI MOTOR AMERICA
  4. To check the input value of power window switch in force mode, select option "ACTUATION TEST".

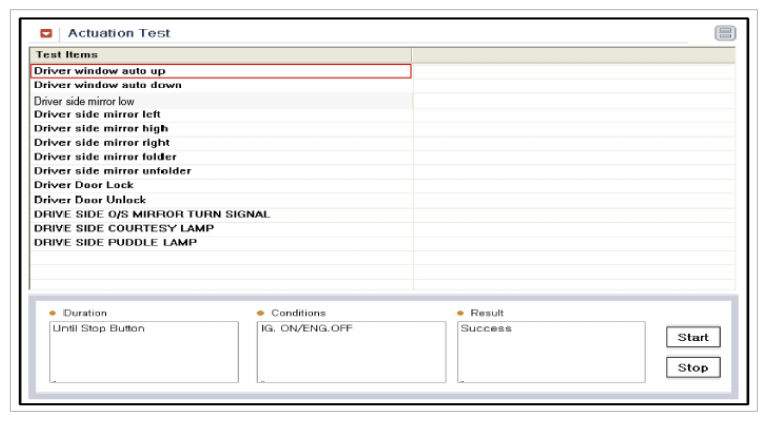

    Fig 2: Driver Power Window Switch Actuation Test
    G08814436Courtesy of HYUNDAI MOTOR AMERICA
