Driver Power Window Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim panel.

    (Refer to "FRONT DOOR TRIM ")

  3. Disconnect the power window switch module connector (A) from the wiring harness.

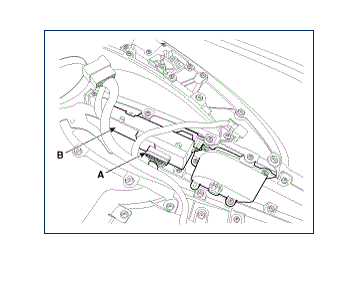

    Fig 1: Identifying Power Window Switch Module And Connector
    G08814410Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the power window switch module (B) from the door trim after loosening the mounting screws.
    NOTE:
    • Be careful not to damage door trim panel and door module mounting hooks.
