Removal And Installation

Disconnect the battery negative terminal.
Remove the engine cover.
Disconnect the alternator connector (A) and the cable (B) from the 'B' terminal.

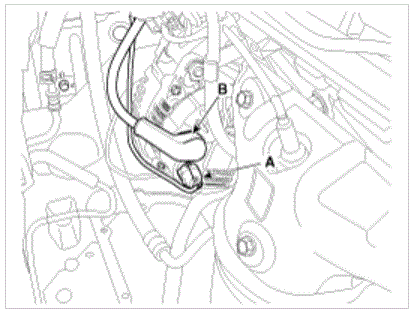

Fig 1: Identifying Alternator Connector And Cable
Courtesy of HYUNDAI MOTOR AMERICA
Remove the drive belt.
(Refer to "DRIVE BELT ")
Remove the alternator (A).
Tightening torque : 26.5 - 33.3 N.m (2.7 - 3.4 kgf.m, 19.5 - 24.6 lb-ft)

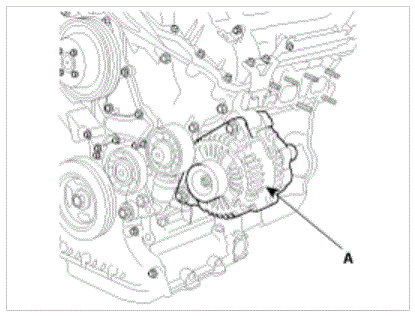

Fig 2: Identifying Alternator
Courtesy of HYUNDAI MOTOR AMERICA
Installation is reverse order of removal.
NOTE: Do not disassemble the Lambda 3.3L engine alternator. The alternator inner parts will not be supplied. If a fault occurs, inspect charging system first. If necessary, replace the alternator assembly.
