Components And Components Location: Components

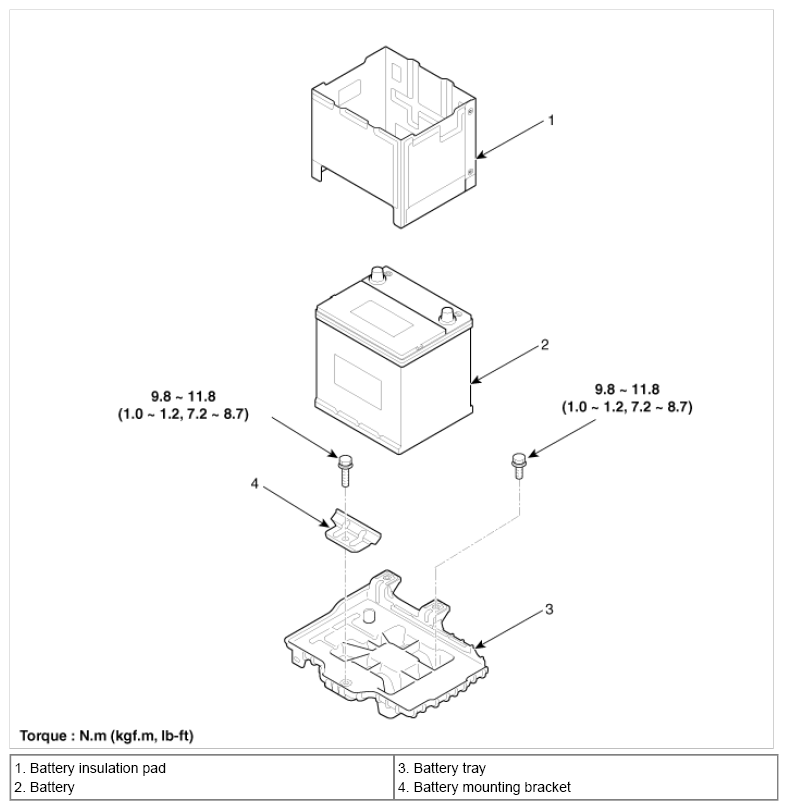

Fig 1: Battery, Insulation Pad, Battery Tray And Mounting Bracket With Torque Specifications
G08809475Courtesy of HYUNDAI MOTOR AMERICA
