Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to "CRASH PAD LOWER PANEL ")

  3. Remove the steering column upper and lower shrouds.

    (Refer to "STEERING COLUMN AND SHAFT ")

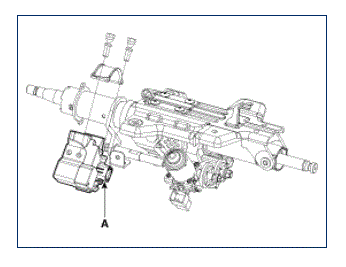

  4. Disconnect the electronic steering column lock connector (A).
    Fig 1: Identifying Electronic Steering Column Lock Connector
    G08814679Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the electronic steering column lock after removing the shear bolts.
    NOTE: Using a suitable tool, cut slots into the heads of the shear bolts.
    Wear safety glasses to protect your eyes from flying bits of metal.
    Wear work gloves to protect your hands from any sharp metal edges on the shear bolt.
