Repair Procedures: Removal

  1. Remove the LH/RH cylinder head cover.

    (Refer to "CYLINDER HEAD COVER ")

  2. Remove the lower oil pan.

    (Refer to "OIL PAN ")

  3. Remove the drive belt auto tensioner.

    (Refer to "DRIVE BELT TENSIONER ")

  4. Remove the crankshaft damper pulley.

    (Refer to "CRANKSHAFT DAMPER PULLEY ")

  5. Remove the engine mounting bracket.

    (Refer to "ENGINE MOUNTING ")

  6. Lift up the engine assembly slightly by using a jack to get access to the side of engine.
  7. Remove the water pump and gasket.

    (Refer to "WATER PUMP ")

  8. Remove the timing chain cover (A).

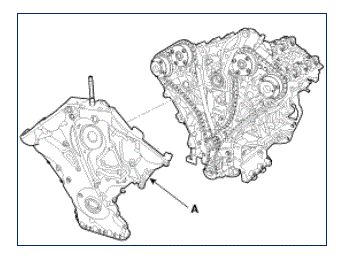

    Fig 1: Identifying Timing Chain Cover
    G08809140Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION: Be careful not to damage the contact surfaces of cylinder block, cylinder head and timing chain cover.
