Components and Components Location: Component

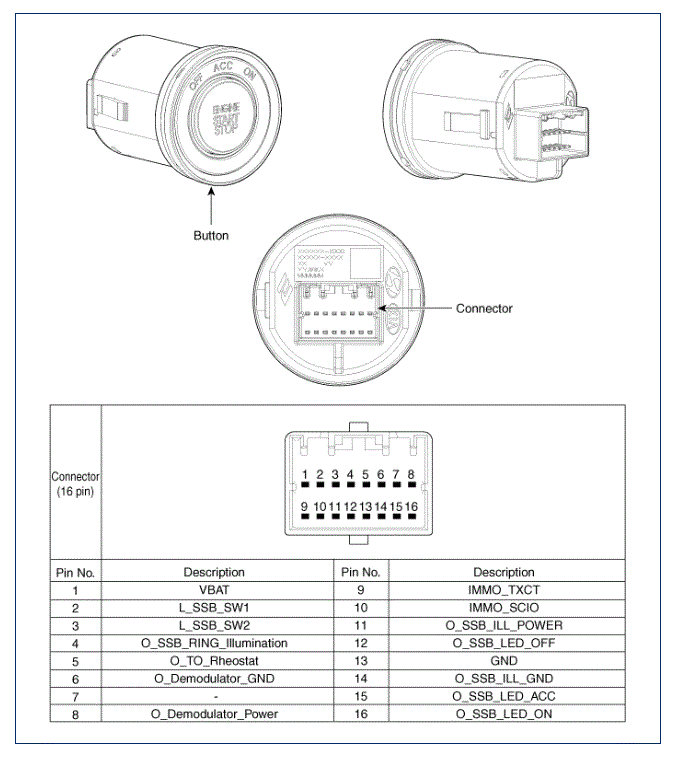

Fig 1: Identifying Start/Stop Button Components

G08814676

Courtesy of HYUNDAI MOTOR AMERICA
