Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the AVN head unit.

    (Refer to "AVN HEAD UNIT ")

  3. Disconnect the start/stop button connector. Push the hook and remove the start/stop button (A).

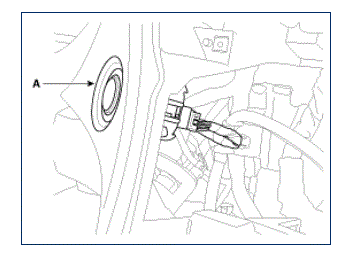

    Fig 1: Identifying Start/Stop Button And Connector
    G08814677Courtesy of HYUNDAI MOTOR AMERICA
