Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the negative (-) battery cable.
  2. Disconnect the accelerator position sensor connector (A).

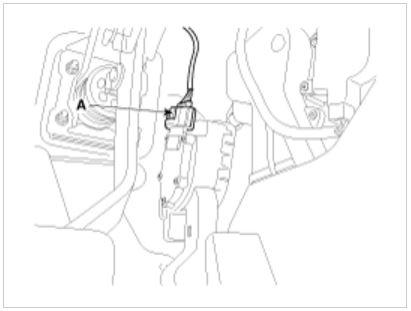

    Fig 1: Identifying Accelerator Position Sensor Connector
    G08809711Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the installation bolt (B) and nuts (C), and the remove the accelerator pedal module.

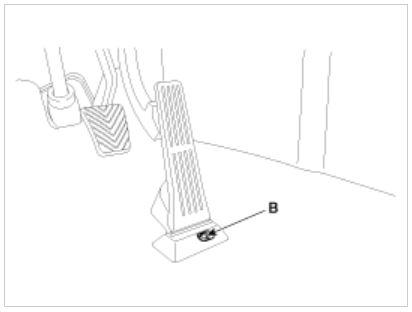

    Fig 2: Identifying Accelerator Pedal Module Installation Bolt
    G08809712Courtesy of HYUNDAI MOTOR AMERICA

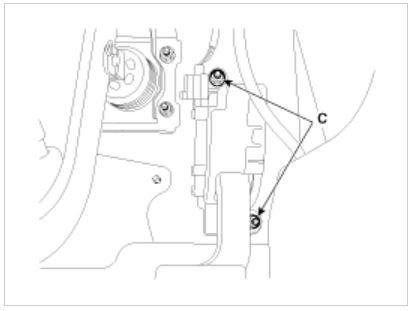

    Fig 3: Identifying Accelerator Pedal Module Mounting Nuts
    G08809713Courtesy of HYUNDAI MOTOR AMERICA
